Description

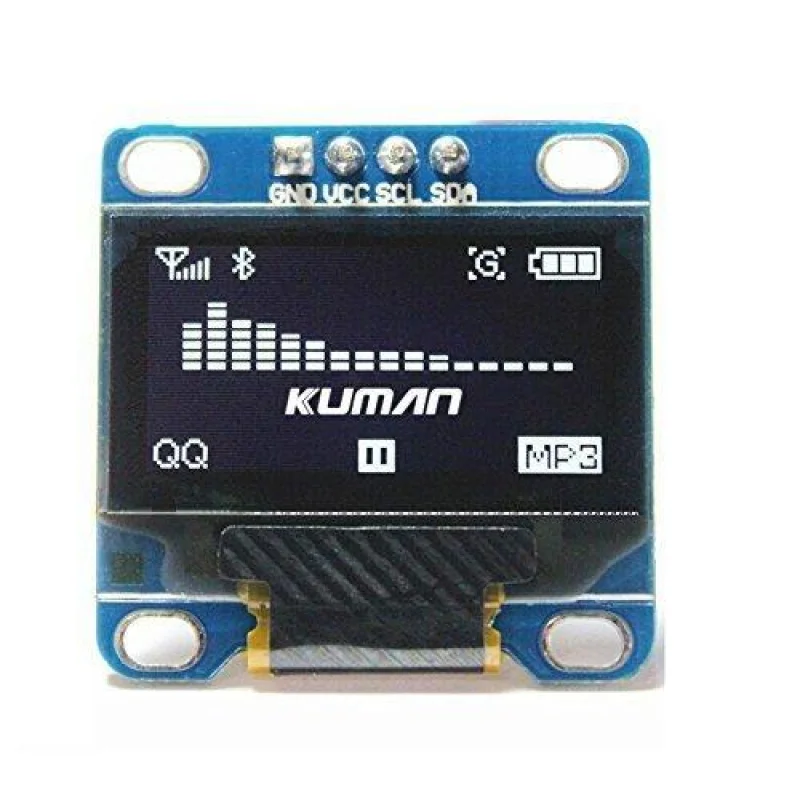

This 1.3 inch OLED display is very compact with a screen diagonal of 3.7 cm and due to the high contrast, characters and writing are very legible. The display consists of 128×64 white OLED pixels which are individually controlled By the built-in SH1106 chip.
It is perfect for easy use with microcontrollers like ATmega, STM32, 8051, AVR, PIC, DSP, ARM, MSP430, PLC, TTL-Logic, etc.. For use with a board we recommend the U8glib library which also contains some example sketches.
The Arduino library for this OLED screen: Adafruit_SSH110x
Features
- Dimensions 36 x 34 x 3mm
- Point matrix 128 x 64
- Pixel size 0.21 mm 0.21 mm
- Pixel distance 0.23 mm 0.23 mm
- Pixel colour White
- Display mode Passive matrix
- Communication interface I2C
- Low energy consumption <11ma
- Supply voltage 3.3V to 5V
- Operating temperature -20 to 70
