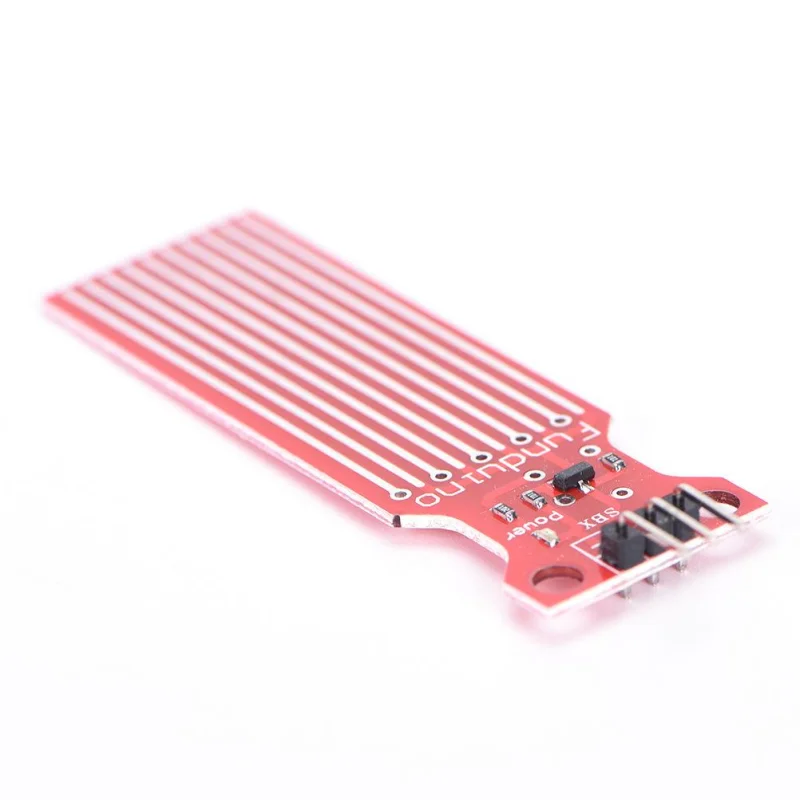

The Water Level Sensor is an analog detection module designed for measuring liquid levels in tanks and containers. It operates by using parallel exposed conductive traces to detect water presence and convert it into a variable analog signal. Operating at 35V DC with low current consumption, it provides stable and reliable readings compatible with Arduino and other microcontrollers. Its compact PCB layout ensures easy integration into water level monitoring, overflow detection, and automated irrigation systems.
Features
- Analog output signal proportional to water level
- Operating voltage range 35V DC
- Low current consumption under 20mA
- 40 16 mm effective detection area
- Parallel conductive trace sensing technology
- Direct compatibility with Arduino ADC inputs
- Simple interface with signal and power pins
- Compact PCB design for easy installation
- Suitable for overflow and leakage detection
- Supports real-time liquid level monitoring
Specifications
- Operating Voltage: 35V DC
- Operating Current: < 20mA
- Output Type: Analog Voltage Signal
- Detection Method: Exposed Parallel Conductive Traces
- Detection Area: 40 16 mm
- Humidity Range: 10%90% RH non-condensing
- Interface Type: 3-pin (VCC, GND, Signal)
- PCB Material: FR4
- PCB Dimensions: Approx. 62 20 mm
- Application Type: Liquid Level Detection
- Compatibility: Arduino, ESP32, STM32, AVR
