Description

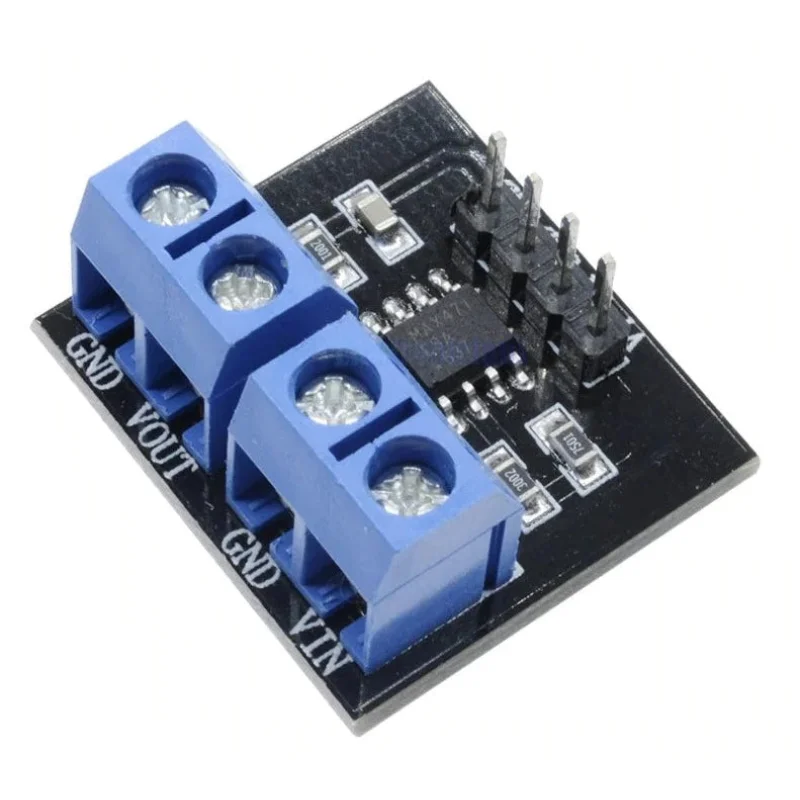

The Voltage and Current Sensor Module based on the MAX471 is designed for DC voltage and current measurement in embedded and Arduino-based systems. It supports current sensing up to 3A with a 1V/A output ratio and 2% typical accuracy. The onboard resistive voltage divider scales input voltage by a factor of 5, allowing safe measurement up to 25V when used with 5V ADC systems. With 10-bit ADC resolution, it enables precise monitoring of power consumption. Ideal for power analysis, battery monitoring, and load testing applications.
Features
- MAX471 High-Side Current Sensor IC
- DC Current Measurement 03A
- 1V/A Analog Output Ratio
- Typical Accuracy 2%
- Voltage Divider Ratio 1:5
- Input Voltage Up To 25V (5V ADC)
- Compatible With 3.3V And 5V Systems
- 10-bit ADC Resolution Support
- High-Side Load Monitoring
- Suitable For Arduino And MCU Platforms
- Compact PCB Design
- Screw Terminal Input Connectors
Specifications
- Current Sensing IC: MAX471
- Current Measurement Range: 03A DC
- Current Accuracy: 2%
- Current Output Ratio: 1V/A
- Voltage Divider Ratio: 1:5
- Input Voltage Range (5V ADC): 325V DC
- Input Voltage Range (3.3V ADC): 316.5V DC
- ADC Resolution Reference: 10-bit (05V)
- Minimum Detectable Input Voltage: 0.02445V
- Output Type: Analog Voltage Output
- Operating Supply Voltage: 5V DC
- Mounting Type: PCB Module
