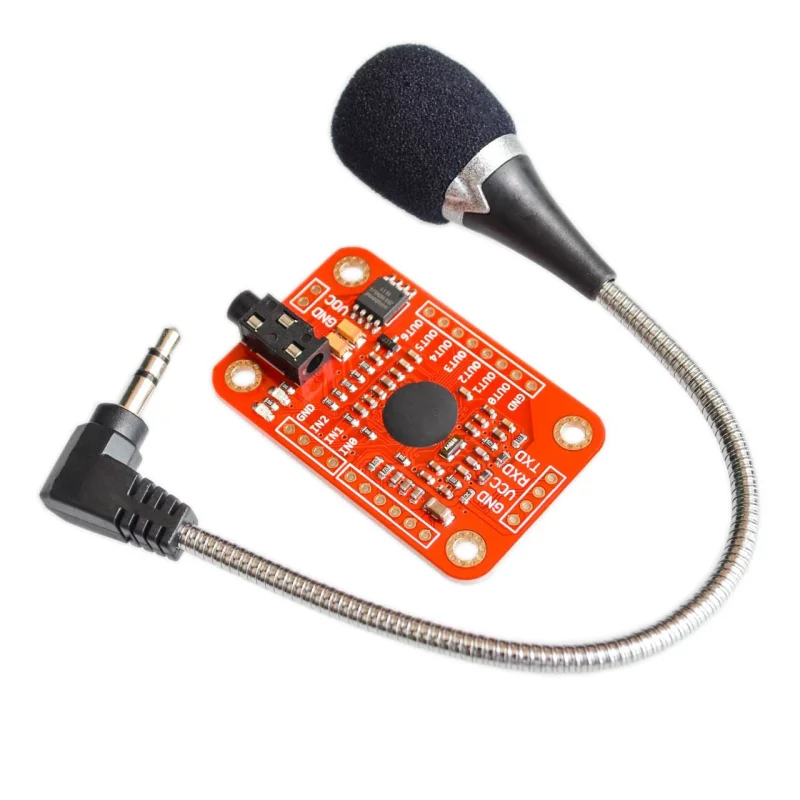

Voice Recognition Module 80 Commands UART Interface

Description

Description

The Voice Recognition Module is a compact speech recognition board designed for seamless integration with Arduino and other microcontrollers. It supports up to 80 user-trained voice commands, with a maximum of 7 active commands loaded at one time through its internal recognizer. Operating at 4.55.5V with UART and GPIO control, the module enables reliable speaker-dependent voice control. With onboard flash storage and 5V TTL interface, it is suitable for robotics, automation systems, and interactive embedded applications.

Feature

• Support up to 80 trained voice commands

• Maximum 7 active commands simultaneously

• Speaker-dependent voice recognition

• 5V TTL UART communication interface

• GPIO output control pins

• Onboard flash storage for voice records

• 3.5mm mono microphone connector

• Microphone pin interface support

• Recognition accuracy up to 99% (ideal conditions)

• User-defined command signatures

• Group management for command organization

• Compact 31 50 mm PCB design

Specifications

• Operating Voltage: 4.55.5V DC

• Operating Current: < 40mA

• Recognition Type: Speaker-Dependent

• Maximum Voice Commands: 80

• Active Commands at One Time: 7

• Recognition Accuracy: Up to 99% (ideal environment)

• Digital Interface: 5V TTL UART and GPIO

• Analog Interface: 3.5mm Mono Microphone Jack + Mic Pins

• Voice Record Length: Up to 1500ms per command

• Flash Storage: Built-in for 80 records

• PCB Dimensions: 31mm 50mm

• Command Index Range: 06 (Recognizer Slots)

Links

• Technical Datasheet
• Voice Recognition module V3 3D Model


Tutorials

• DEMONSTRATION: Elechouse Voice Recognition Module v3.1 w/Arduino Uno R3

• Elechouse Voice Recognition Module V3.1 and Arduino – Setup and Tutorial

• Voice Recognition Module – 254 Voice Commands + UART
