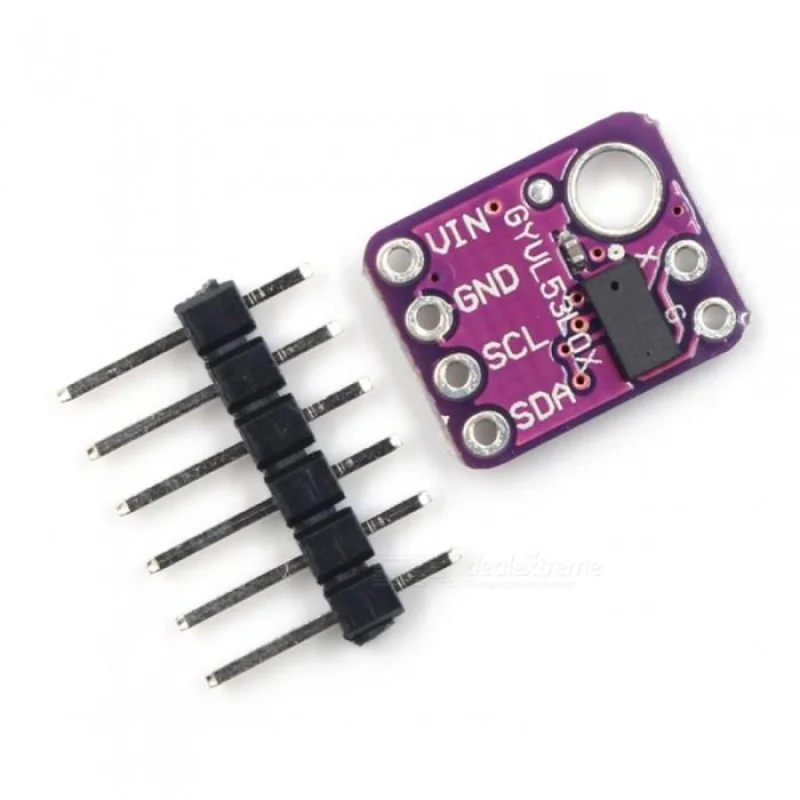

VL53L0X Laser Distance Sensor – 2m Range I2C Interface

Description

Description

The VL53L0X Laser Distance Sensor is a compact time-of-flight module designed for precise distance measurement up to 2m. It uses a Class3 eye-safe laser and is independent of target reflectivity, ensuring consistent readings across different surfaces. The sensor operates at 2.85V and communicates via an I2C interface, making it compatible with Arduino and other microcontrollers. Its small form factor allows integration in robotics, obstacle detection, automated control, and distance monitoring applications. The module provides reliable measurements with fast response suitable for both horizontal and vertical sensing setups.

Features

• Laser Sensor | Class3 eye-safe time-of-flight measurement

• Measurement Range | 30mm to 2m with high accuracy

• Target Independence | Readings unaffected by surface reflectivity

• Interface | I2C for direct connection to Arduino and microcontrollers

• Operating Voltage | 2.85V DC

• Response Time | Fast distance measurement suitable for real-time applications

• Compact Module | Small form factor for easy integration in systems

• Applications | Robotics, obstacle detection, automated control, distance monitoring

Specifications

• Operating Voltage | 2.85V DC

• Interface | I2C communication

• Current Consumption | Typical 20mA during measurement

• Module Dimensions | 22 16 10mm (L W H)

• Weight | 10g

• Sensor Type | Time-of-Flight (ToF) laser

• Laser Class | Class3 eye-safe

• Measurement Range | 30mm to 2m

• Resolution | 1mm

• Field of View | ~25

• Operating Temperature | -20C to 70C

• Storage Temperature | -30C to 80C
