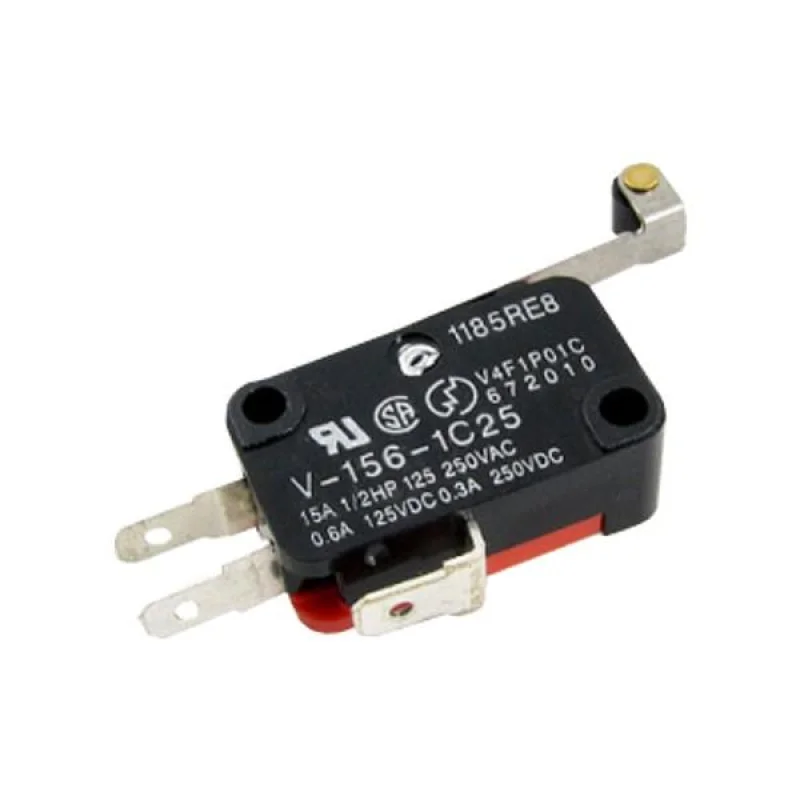

The V-156-1C25 SPDT limit switch is a compact electromechanical switch designed for position detection and mechanical limit control in industrial and automation systems. It features a long hinge roller lever actuator and a single-pole double-throw (SPDT) contact configuration for flexible circuit control. Rated for both AC and DC applications, it ensures stable switching performance under repeated mechanical actuation. Built with a durable plastic and metal housing, it provides reliable operation in demanding environments. Suitable for 3D printers, CNC machines, and automation equipment.
Features:
- SPDT contact configuration with 1NO and 1NC
- Long hinge roller lever actuator for smooth triggering
- Rated up to 15A at 125/250V AC
- Supports both AC and DC switching applications
- Compact mechanical design for tight installations
- Durable plastic and metal construction
- High repeatability for consistent switching performance
- Three-terminal interface for flexible wiring
- Roller lever reduces mechanical wear
- Suitable for limit detection and safety interlocks
- Standard mounting holes for easy installation
- Reliable operation in automation environments
Specifications
- Model: V-156-1C25
- Switch Type: SPDT (1NO + 1NC)
- Rated Current: 15A AC
- Rated Voltage: 125/250V AC
- DC Rating: 0.6A at 125V DC, 0.3A at 250V DC
- Actuator Type: Hinge Roller Lever
- Number of Terminals: 3
- Contact Type: Snap-action
- Material: Plastic and metal
- Switch Dimensions: 27.9 16 9.9 mm
- Actuator Length: 50.8 mm
- Mounting Hole Diameter: 3.3 mm
- Terminal Width: 4.8 mm
