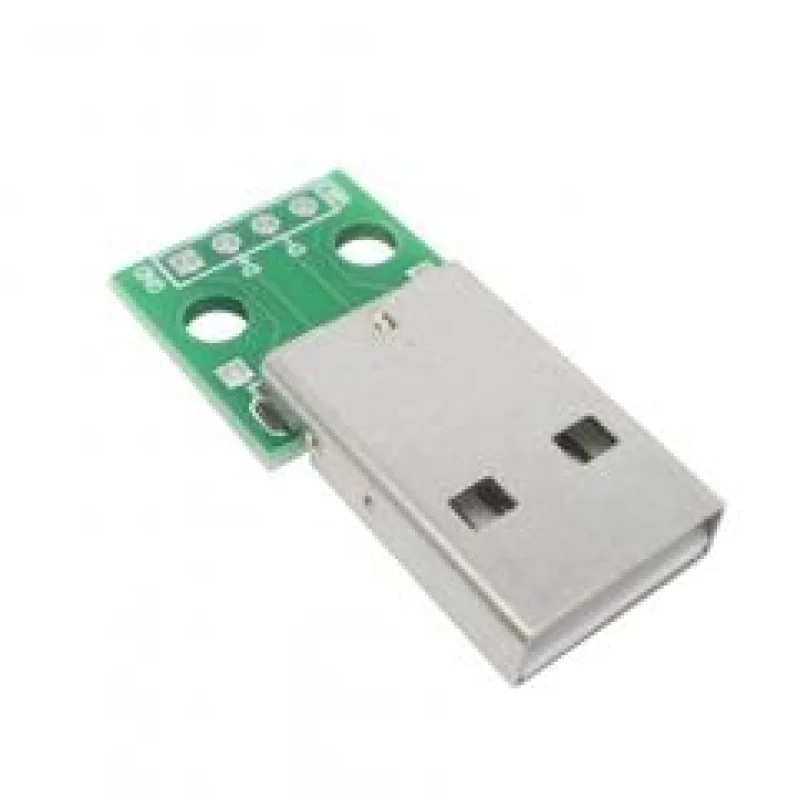

USB Type-A Male to 4-Pin DIP Breakout Adapter

Description

Description

The USB Type-A Male to 4-Pin DIP Breakout Adapter is designed to provide easy access to USB power and data lines for prototyping and embedded electronics projects. It converts a standard USB Type-A connection into a 2.54 mm DIP interface with all four USB pins clearly broken out for convenient wiring and soldering. The board supports direct connection to breadboards, jumper wires, or male header pins, making it suitable for rapid prototyping and USB-powered applications. Its compact layout and labeled pinout simplify integration into development, testing, and educational projects.

Features

• USB Type-A male connector onboard
• All 4 USB pins fully broken out
• Standard 2.54 mm DIP pin spacing
• Supports USB power and data access
• Clearly labeled pin definitions
• Compatible with breadboards and prototyping boards
• Direct soldering support for wires
• Works with standard male header pins
• Compact PCB layout for embedded projects
• Suitable for USB-powered circuits
• Easy integration into DIY electronics projects
• Stable mechanical connection design
• Ideal for testing and debugging applications
• Simple plug-and-play hardware interface
• Lightweight and reusable breakout module

Specifications

• Connector Type: USB Type-A Male

• Interface Type: 4-Pin DIP Breakout

• Pin Pitch: 2.54 mm

• USB Pins Available: VCC, GND, D+, D

• Board Type: USB Breakout Adapter

• Mounting Method: Through-Hole DIP

• Compatible Connection: Breadboard and Header Pins

• Soldering Support: Direct Wire Soldering

• PCB Material: FR4

• Connector Orientation: Straight Type

• Application Type: USB Power and Data Access

• Board Reusability: Reusable Prototype Module

• Operating Voltage: 5V USB Standard

• Compatibility: USB 2.0 Devices and Prototyping Systems
