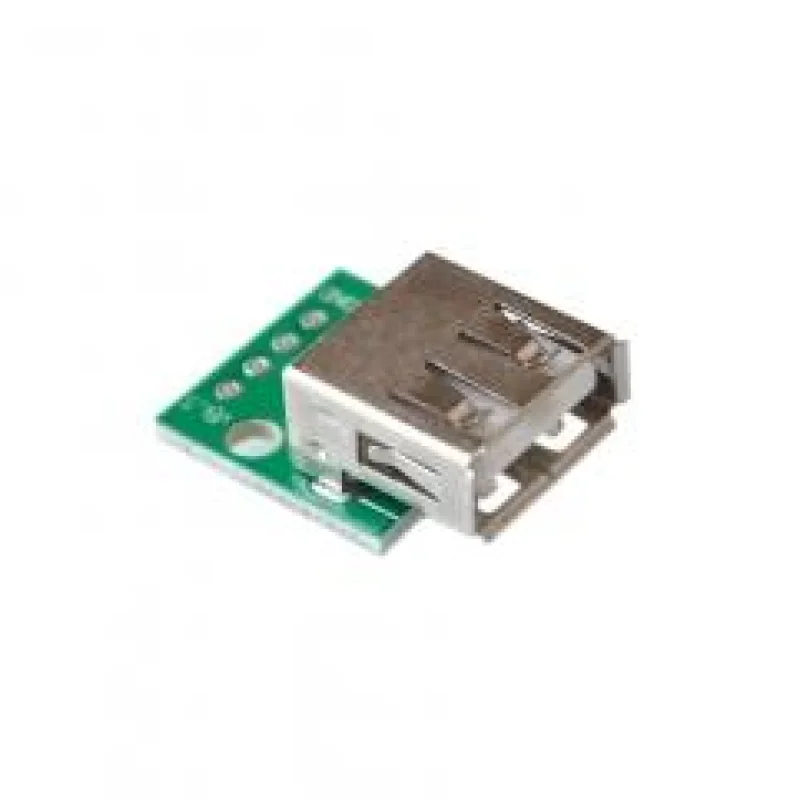

USB Type-A Female to 4-Pin DIP Breakout Adapter

Description

Description

The USB Type-A Female to 4-Pin DIP Breakout Adapter is designed to simplify USB power and data integration in prototyping and embedded projects. It converts a standard USB Type-A female connector into a 2.54 mm DIP interface with all four USB pins clearly broken out for direct access. The board supports easy connection using male header pins or direct wire soldering, making it suitable for custom USB-powered circuits and development applications. Its compact PCB layout ensures reliable connectivity and convenient integration into breadboards, prototypes, and DIY electronics projects.

Features

• USB Type-A female connector breakout board
• All USB power and data pins exposed
• Standard 2.54 mm DIP pin spacing
• Supports USB power and data transfer
• Compatible with breadboards and prototyping boards
• Clearly labeled pinout connections
• Supports direct wire soldering
• Compatible with standard male header pins
• Compact PCB design for embedded projects
• Suitable for DIY USB interface applications
• Easy integration with microcontroller systems
• Durable PCB construction
• Convenient for rapid prototyping
• Simple plug-and-play hardware interface

Specifications

• Connector Type: USB Type-A Female

• Interface Type: 4-Pin DIP Breakout

• Pin Spacing: 2.54 mm

• USB Pins Available: VBUS, D-, D+, GND

• Supported USB Functions: Power and Data

• Mounting Method: Through-Hole DIP

• Board Material: FR4 PCB

• Connector Orientation: Vertical Mount

• Compatible Connection: Male Header Pins or Wires

• PCB Color: Blue

• Operating Voltage: 5V USB Standard

• Application Type: USB Prototyping and Development

• Board Dimensions: Approx.18 18 mm

• Weight: Approx. 3 g
