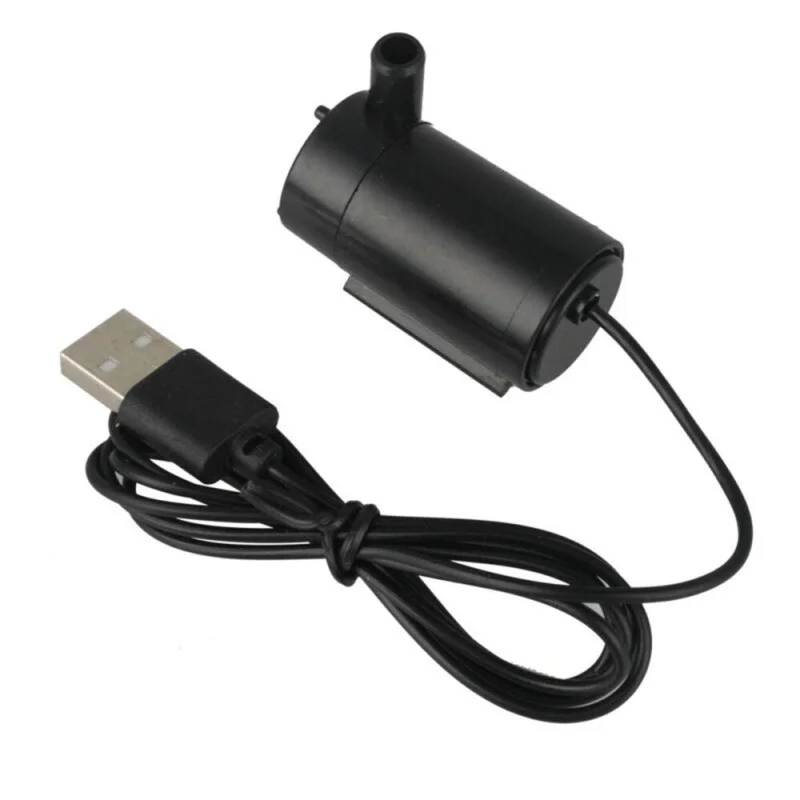

The USB Mini Submersible Water Pump is a compact DC pump designed for low-voltage fluid transfer and circulation applications. It operates within a 2.56V DC range and uses a brushless magnetic driving mechanism for stable and efficient performance. The pump delivers a flow rate of up to 120 L/h with a maximum lift height of 1.1 m, making it suitable for small-scale systems. Built with engineering plastic, it ensures durability and resistance to continuous operation. Ideal for DIY projects, cooling systems, aquariums, and educational experiments.
Features
- Brushless DC motor with magnetic drive mechanism
- Operating voltage range from 2.5V to 6V DC
- Flow rate up to 120 liters per hour
- Maximum lift height up to 1.1 meters
- Low power consumption between 0.4W and 1.5W
- Continuous operation lifespan up to 500 hours
- Compact cylindrical design for tight spaces
- Submersible operation for water-based systems
- Engineering plastic housing for corrosion resistance
- Low noise and stable fluid flow performance
- Pre-attached power wires for easy integration
- Suitable for USB-powered and battery-powered systems
- Lightweight construction for portable applications
- Compatible with small tubing systems
- Simple two-wire DC connection interface
Speciations
- Operating Voltage: 2.56V DC
- Working Current: 130220mA
- Power Consumption: 0.41.5W
- Maximum Flow Rate: 80120 L/h
- Maximum Lift Height: 0.41.1 m
- Motor Type: Brushless DC Magnetic Drive
- Outlet Outer Diameter: 7.5 mm
- Outlet Inner Diameter: 4.7 mm
- Pump Diameter: 24 mm
- Pump Length: 45 mm
- Pump Height: 33 mm
- Wire Length: 150200 mm
- Housing Material: Engineering Plastic
- Operating Mode: Submersible
- Continuous Working Life: 500 hours
