Umbilical Toolhead Harness (Toolhead to Frame PCB) 14-pin

Description

This mod adds two PCBs (Frame PCB, Toolhead PCB) and a cable (Umbilical Cable, listed here) to the V0.1 that can aid in wire management and routing as well as making the toolhead able to be swappable.

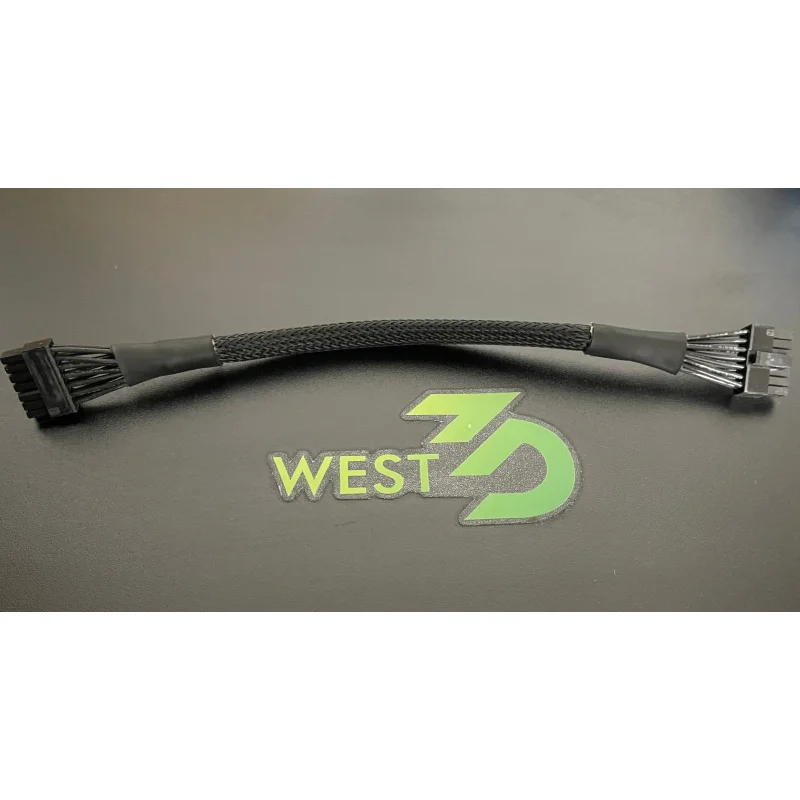

This is the 14-pin Umbilical cable that connect the Frame and Toolhead PCBs together. We have sourced this using 20AWG UL1332 (200C 300V) wire, neatly wrapped in a cable loom that terminates neatly into heatshrink. Pin-to-Pin measurement is 240mm.

This mod was designed by Tim Abraham (timmit99) and open sourced, youcan find additional information here.
