Description

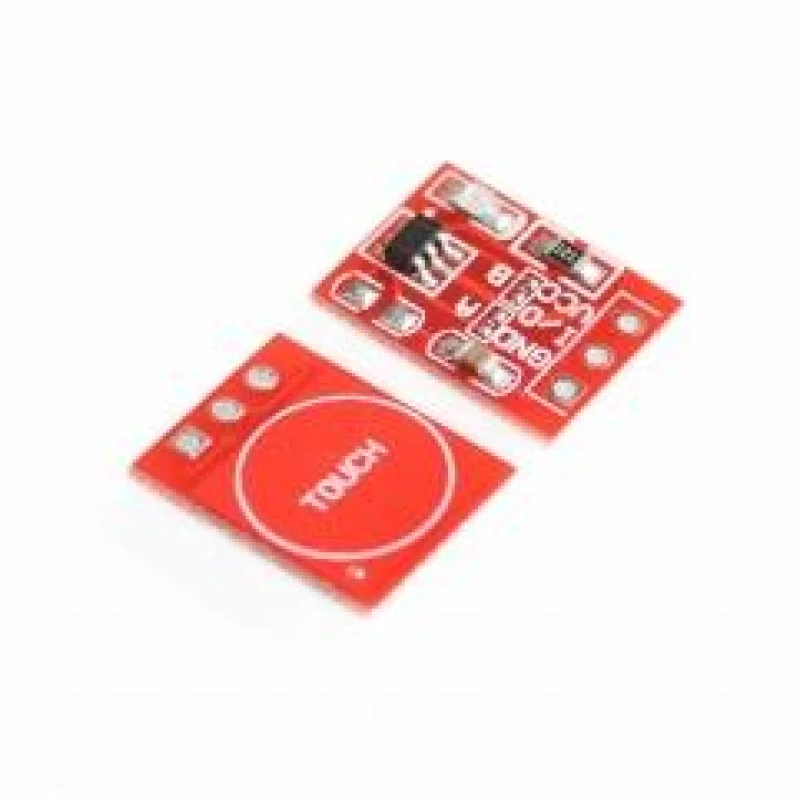

The TTP223 Self Locking Touch Sensor Module is a capacitive touch input device designed to replace traditional mechanical toggle switches in electronic systems. It uses a TTP223 IC to detect touch input and provides a stable digital output with toggle (self-locking) functionality. The module operates at low voltage and offers reliable performance with high sensitivity and noise resistance. Its compact design allows easy integration into embedded systems and control panels. Ideal for smart home interfaces, DIY electronics, and human-machine interaction projects.
Features
- TTP223 capacitive touch sensing IC
- Self-locking toggle output mode
- Digital output signal (HIGH/LOW)
- Operating voltage range 2V5.5V
- High sensitivity touch detection
- Low power consumption design
- Onboard status LED indicator
- Supports non-metallic overlay (glass, plastic)
- Stable performance with noise immunity
- Compact PCB form factor
- Fast response time
- Easy integration with microcontrollers
- No mechanical wear or moving parts
- Single-channel touch input
Specifications
- Operating Voltage: 2V 5.5V DC
- Operating Current: <10 A (low power mode)
- Output Type: Digital (High/Low)
- Output High Level: ~VCC
- Output Low Level: 0V
- Response Time: <60 ms
- Touch Detection Method: Capacitive sensing
- Mode: Self-locking (toggle mode)
- Interface: 3-pin (VCC, GND, OUT)
- Indicator: Onboard LED
- PCB Dimensions: 24 mm x 24 mm
- Mounting Holes: 4 x M2 holes
- Operating Temperature: -20C to 70C
- Compatibility: Arduino, ESP32, Raspberry Pi
