Thermoelectric Peltier Cooling System Kit

Description

Description

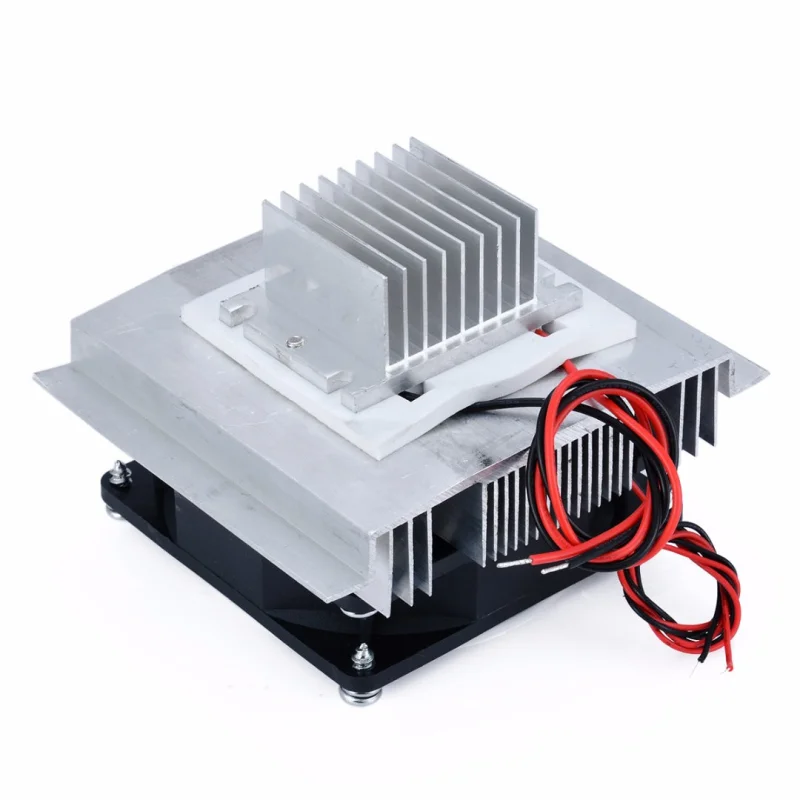

The Thermoelectric Peltier Cooling System Kit is a semiconductor-based cooling assembly designed for thermoelectric refrigeration, temperature reduction experiments, and electronic cooling applications. It is designed for use with the TEC1-12704 thermoelectric Peltier module and includes dual aluminum heat sinks, a cooling fan, insulation components, and mounting hardware for efficient thermal transfer. The larger heat sink combined with the cooling fan improves heat dissipation on the hot side, while the smaller heat sink provides cooling on the cold side. Suitable for DIY cooling systems, electronics projects, laboratory demonstrations, and thermal management applications.

The DIY kit is a semiconductor cooling kit which uses aTEC1-12704 Thermoelectric Cooler 4A Peltier Module.The kit has 2 heat sinks: the bigger one is for the hotter side and the smaller one is for the cooler side. The bigger the heat sink, the greater dissipation of the heat.

Note:

1. This is an unassembled kit.

2. The kit does not includeTEC1-12704Thermoelectric Peltier Modulewhich is available at

3. Please allow a tolerance of 5% on all dimensions as it is done manually.

Kit Includes

• 1 x Cooling Fan
• 1 x Fan Gauze
• 1 x Guide cold plate
• 1 x Radiator
• 1 x Thermal insulation gasket
• 1 x Pack of Screws

Features

• Compatible with TEC1-12704 Peltier modules
• Semiconductor thermoelectric cooling system design
• Dual aluminum heat sink structure
• High-efficiency hot side heat dissipation
• Integrated cooling fan assembly
• Compact thermal management solution
• Suitable for DIY cooling projects
• Supports electronic temperature reduction experiments
• Includes thermal insulation gasket
• Durable aluminum cooling components
• Optimized airflow cooling performance
• Suitable for laboratory demonstrations
• Designed for continuous cooling operation
• Includes mounting screws and accessories
• Unassembled kit configuration for customization

Specifications

• Product Type: Thermoelectric Cooling System Kit
• Compatible Module: TEC1-12704 Thermoelectric Cooler
• Cooling Method: Thermoelectric Semiconductor Cooling
• Heat Sink Material: Aluminum
• Heat Sink Configuration: Dual Heat Sink Design
• Cooling Fan Included: Yes
• Fan Protection Gauze Included: Yes
• Guide Cold Plate Included: Yes
• Thermal Insulation Gasket Included: Yes
• Mounting Hardware Included: Yes
• Assembly Type: Unassembled DIY Kit
• Surface Cooling Method: Air-Cooled Heat Dissipation
• Application Type: Electronic and Thermal Cooling
• Dimension Tolerance: 5%
• Applications: CPU Cooling, DIY Refrigeration, Laboratory Experiments, IndustrialCooling
