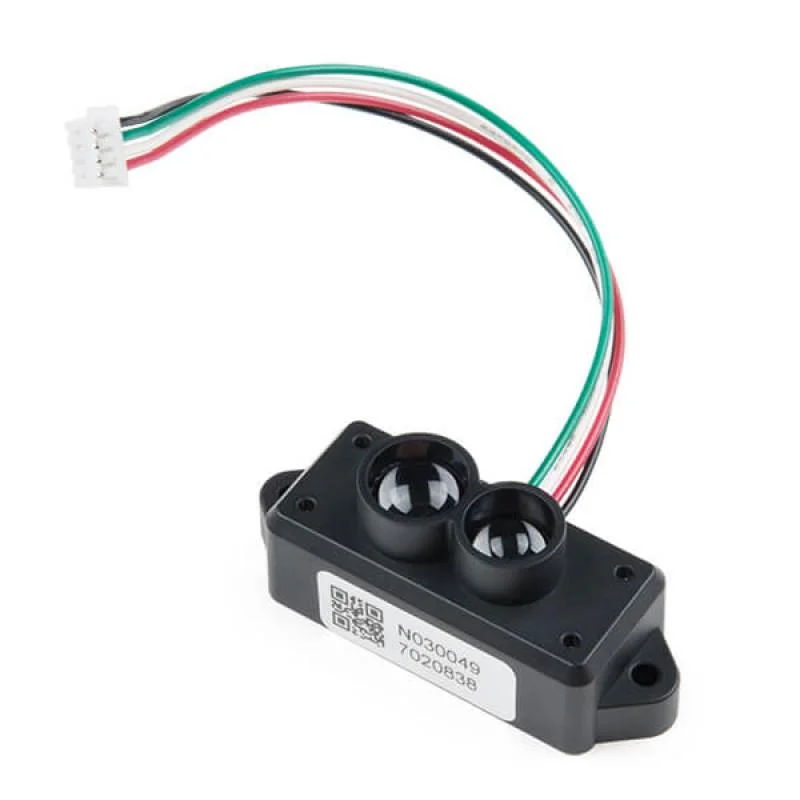

TFMini Micro LiDAR Module – 12m Range with UART Interface

Description

Description

The TFMini Micro LiDAR Module is a compact unidirectional laser range finder based on time-of-flight (ToF) technology, capable of measuring distances from 0.3m to 12m. It provides high-precision distance data with a resolution of 5mm, accuracy of 1% for distances under 6m and 2% for 612m, and a refresh rate of 100Hz. The module operates at 4.56V DC, consumes 0.6W on average, and communicates via UART (TTL), making it compatible with Arduino and other microcontrollers. Its small size, low weight (4.7g), and strong anti-light performance allow use in indoor and outdoor applications such as robotics, obstacle avoidance, autonomous vehicles, and altitude-hold drones. The 2.3 acceptance angle ensures precise distance measurement in targeted directions.

TF Mini Optical Stimulation Light Path

Measurement range schematic diagram

Features

• Measurement Range | 0.3m to 12m with high precision

• Resolution | 5mm minimum for accurate distance detection

• Accuracy | 1% for distances <6m, 2% for 612m

• Sampling Rate | 100Hz refresh frequency for real-time measurement

• Laser Type | 850nm Class1 eye-safe unidirectional ToF sensor

• Operating Voltage | 4.56V DC, average power 0.6W

• Communication Interface | UART (TTL) compatible with Arduino and microcontrollers

• Acceptance Angle | 2.3 for targeted distance measurement

• Module Size & Weight | 42 15 16mm, 4.7g for compact integration

Specifications

• Operating Voltage | 4.56 V DC

• Average Power Consumption | 0.6 W

• Communication Interface | UART (TTL)

• Module Dimensions | 42 15 16 mm (L W H)

• Weight | 4.7 g

• Measurement Range | 0.312 m (indoor)

• Resolution | 5 mm

• Accuracy | 1% (<6 m), 2% (612 m)

• Refresh Rate | 100 Hz

• Acceptance Angle | 2.3

• Laser Wavelength | 850 nm

• Operating Temperature | 0 C to 60 C

• Storage Temperature | -20 C to 75 C

• Ambient Light Immunity | Up to 70 klux

Links

• Product wiki
• 3D model on grabcad.com
• Github sample Arduino: TF_Mini
• PC software
• Product Manual
• Datasheet
• Arduino Library

Tutorials

• Tutorial from sparkfun.com
