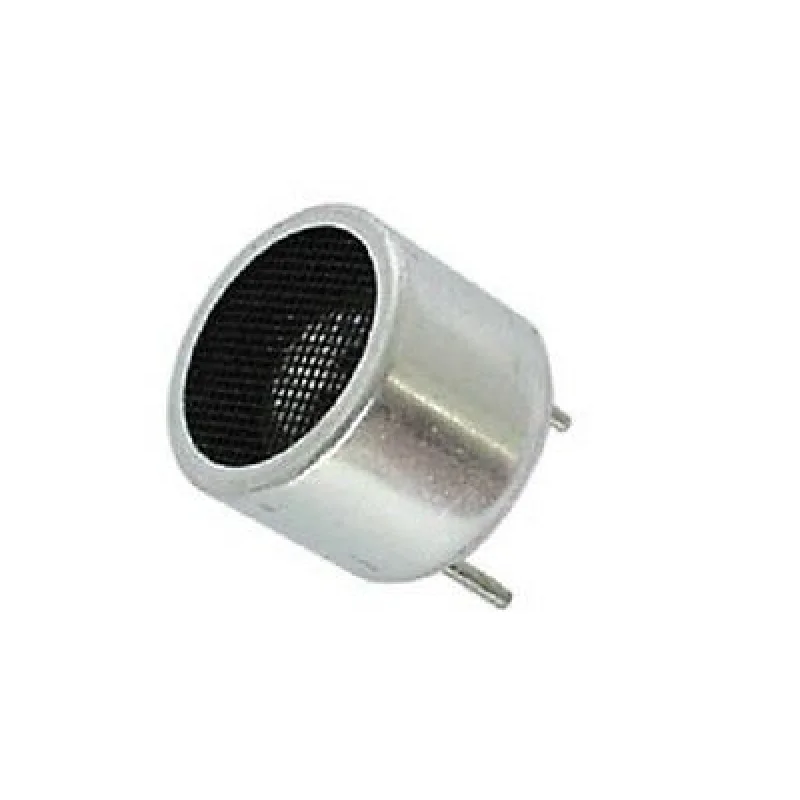

TCT TCT40-16T/R Piezoelectric Ultrasonic Sensor Transceiver

Description

Description

The TCT TCT40-16R is a 40kHz ultrasonic sensor transceiver designed for precise distance measurement and object detection. It integrates both emission and reception functions, with a narrow beam angle of 60 15 and a typical detection range of up to 4 meters in air. The sensor operates at 5V DC with low current consumption, producing a sound pressure level of at least 112dB and a receiving sensitivity of -65dB. It features a capacitance of 2400pF 20% and supports operation in temperatures from -20C to +70C. The module is compatible with standard microcontrollers and embedded systems, making it suitable for robotics, automation, and level sensing applications.

Features

• Transducer Type: Piezoelectric ceramic for ultrasonic signal emission and reception

• Nominal Frequency: 40kHz with 1kHz tolerance for precise detection

• Sound Pressure Level: 117dB at 0dB = 0.02mPa for consistent signal output

• Receiving Sensitivity: -65dB at 0dB = 1V/Pa for accurate echo detection

• Capacitance: 2500pF 30% supporting standard driving circuits

• Maximum Driving Voltage: 80V peak-to-peak for safe operation

• Beam Angle / Directivity: 60 15 (-6dB) for targeted sensing

• Operating Temperature: -20C to +70C with stable performance across environmental variations

Specifications

• Brand / Model | TCT TCT40-16T/R

• Product Type | Piezoelectric Ultrasonic Sensor Transceiver

• Nominal Frequency | 40kHz 1kHz

• Emitted Sound Pressure Level | 117dB (0dB = 0.02mPa)

• Receiving Sensitivity | -65dB (0dB = 1V/Pa)

• Capacitance | 2500pF 30%

• Maximum Driving Voltage | 80V peak-to-peak

• Beam Angle / Directivity | 60 15 (-6dB)

• Operating Voltage | 5V DC typical

• Operating Temperature Range | -20C to +70C

• Storage Temperature Range | -40C to +80C

• Applications | Ultrasonic ranging, robotics, parking detection, liquid level sensing, proximity switches
