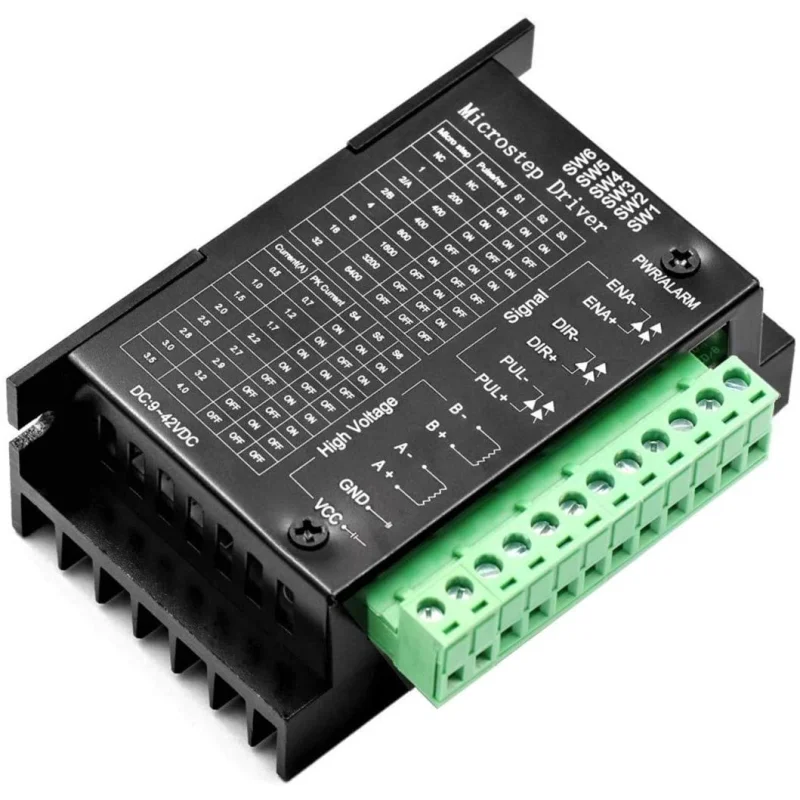

The TB6600 stepper motor driver module is designed for precise control of bipolar stepper motors in CNC and automation systems. It operates within a 942V DC input range and supports up to 4A output current with selectable current levels. The driver features multiple microstepping modes up to 1/32 step resolution, enabling smooth and accurate motion control. Built with optical isolation for high-speed input signals, it ensures reliable performance and noise immunity. Ideal for CNC machines, 3D printers, and industrial motion control applications.
Features
- TB6600 driver chipset for bipolar stepper motor control
- 942V DC wide input voltage range
- Adjustable output current up to 4A
- 8 selectable current levels
- Microstepping modes up to 1/32 step resolution
- High-speed optocoupler isolated input signals
- Standard common anode pulse interface
- Offline hold function for energy saving
- Semi-enclosed housing for improved durability
- Automatic semi-flow current reduction
- Built-in thermal protection circuit
- Overcurrent protection mechanism
- Stable operation with low noise output
- Compatible with CNC controllers and microcontrollers
Specifications
- Input Voltage: 942V DC
- Output Current: 0.54.0A (adjustable)
- Number of Current Levels: 8 levels
- Microstepping Modes: Full, 1/2, 1/4, 1/8, 1/16, 1/32
- Control Signal: Pulse + Direction
- Input Signal Type: Optically isolated
- Logic Signal Voltage: 3.324V DC
- Max Pulse Frequency: 20 kHz
- Motor Type: Bipolar stepper motor
- Protection Features: Thermal, overcurrent
- Cooling Method: Passive + heatsink
- Operating Temperature: -10C to 45C
- Storage Temperature: -20C to 65C
- Module Dimensions: 96 56 33 mm
- Weight: 150 g
