Description
Description

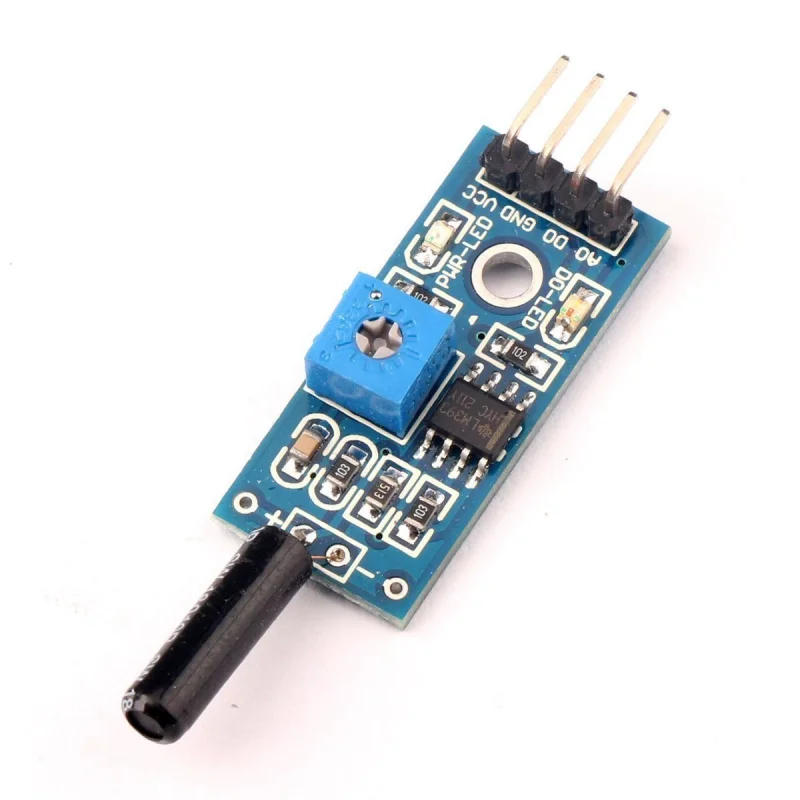

The SW-18010P Vibration Sensor Module with LM393 Comparator is an open-type vibration detection module designed to sense mechanical vibrations and trigger digital signals. It operates at a voltage range of 35V, providing a clean digital switch output (0 or 1) suitable for direct connection to microcontrollers. The module features a wide-voltage LM393 comparator, strong driving capability over 15mA, and stable waveform output. It is commonly used in applications such as theft alarms, intelligent vehicle monitoring, earthquake detection, and motorcycle security systems. Its reliable response to vibration events allows integration with relay modules and other control circuits.
Features
- SW-18010P Vibration Sensor: Open-type sensor for mechanical vibration detection.
- LM393 Comparator: Wide-voltage comparator providing stable digital signal output.
- Operating Voltage: Compatible with 35V DC systems.
- Output Type: Digital switch output (0 or 1) suitable for microcontroller interfacing.
- Current Driving Capability: Supports loads up to 15mA.
- Response Time: Immediate activation upon vibration detection.
- Signal Quality: Clean waveform with minimal noise for reliable detection.
- Integration: Can drive relay modules or control circuits directly.
Specifications
- Operating Voltage | 35V DC
- Current Consumption | 15mA
- Output Type | Digital switch (0 or 1)
- Comparator | LM393 wide-voltage comparator
- Sensor Type | SW-18010P open-type vibration sensor
- Mounting | PCB mount, through-hole
- Response Time | Instant upon vibration detection
- Signal Quality | Clean waveform with minimal noise
- Output Driving Capability | Up to 15mA load
- Operating Temperature | 10C to 70C
- Storage Temperature | 20C to 85C
