Description
Dual output level shifted Stepstick adapter for Neopixel strips.
Overview

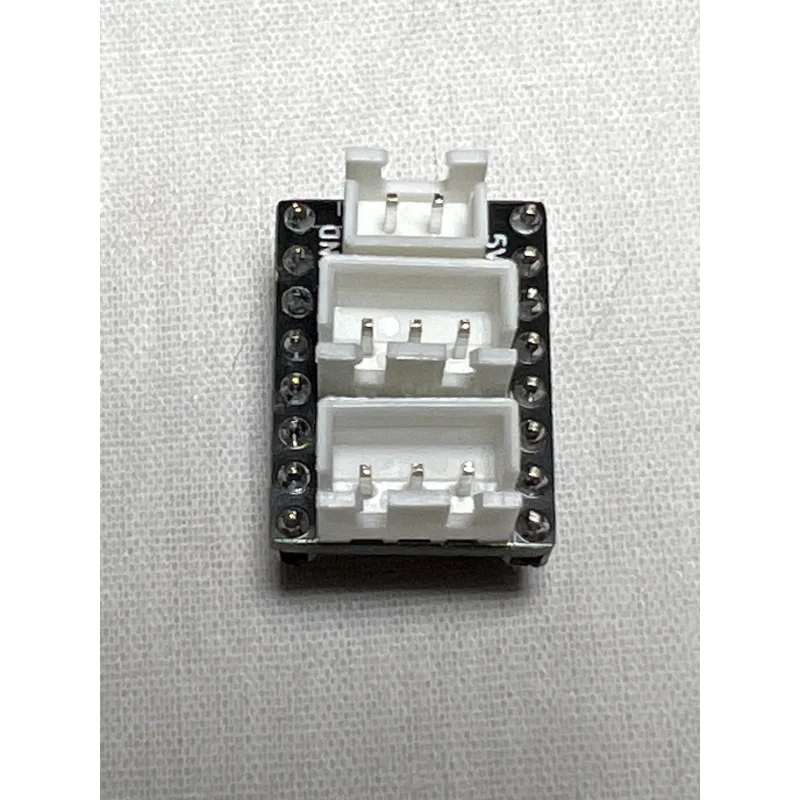

This board converts the logic levelSTEPandDIRoutputs on a Stepstick header to 5V level for properly driving 2 Neopixel strips. Input 5V from a 2-pin JST-XH header, with 2 outputs on 3-pin JST-XH headers.
Setup
To use, simply configure theSTEP/DIRpin for the socket you plug the board into as your neopixel pin. It’s that simple!
More info can be found here: Neopixel Stepper Stick
