Standard Wiring Harness for Voron 2.4

Description

PLEASE READ THE FULL DESCRIPTION. UPDATED 11/2025.

This may come with limited extras like a free Omron Probe and Ethernet cable which are non-standard for our kit (but nice to have!)

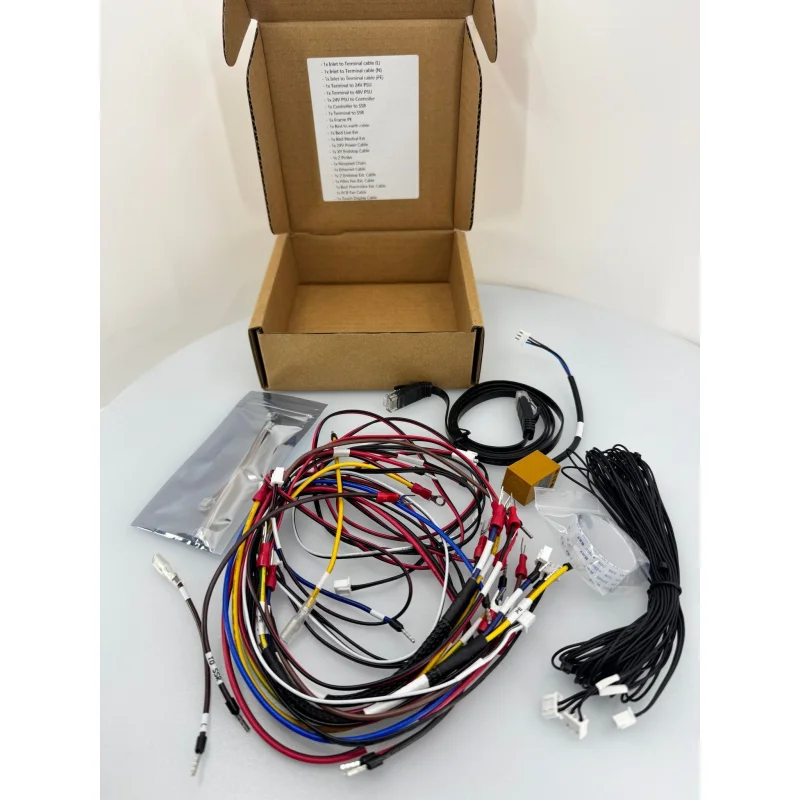

This pre-crimped harness comes with all wire (including mains) most will need for their 2.4 build. Its modified off of the V2.4 350 LDO Kit. This batch has removed toolhead wiring to be flexible with whatever you decide to go with (e.g CAN, 14-pin harness etc.)

This kit comes pre-crimped for a Leviathancontroller board but will work with most others with limited change required. It comes with power connectors standard for the Tyco Power Inlet and ZF Rocker switch. The kit wires are provided at length for a 350mm build, however will work with smaller builds as well (with extra wire of course). By default this is intended to use with an XY and Z Endstop – you can find them here (here for hall effect), and here for Z endstop.

Below is a brief summaryof what is included (all labeled):

Neopixel wiring (pre-soldered)

X Endtop

Y Endstop

Inlet to Terminal cables (L/N/PE)

Terminal to PSU (both 24v and 48v)

PSU to controller

Controller to SSR

Terminal to SSR

Frame to Earth

Bed to Earth

Bed to Live

Bed to Neutral

24V Power

Z endstop extension

Filter Fanextension

Bed Thermistor Extension

PCB Fan Cable

Display Ribbon Cable
