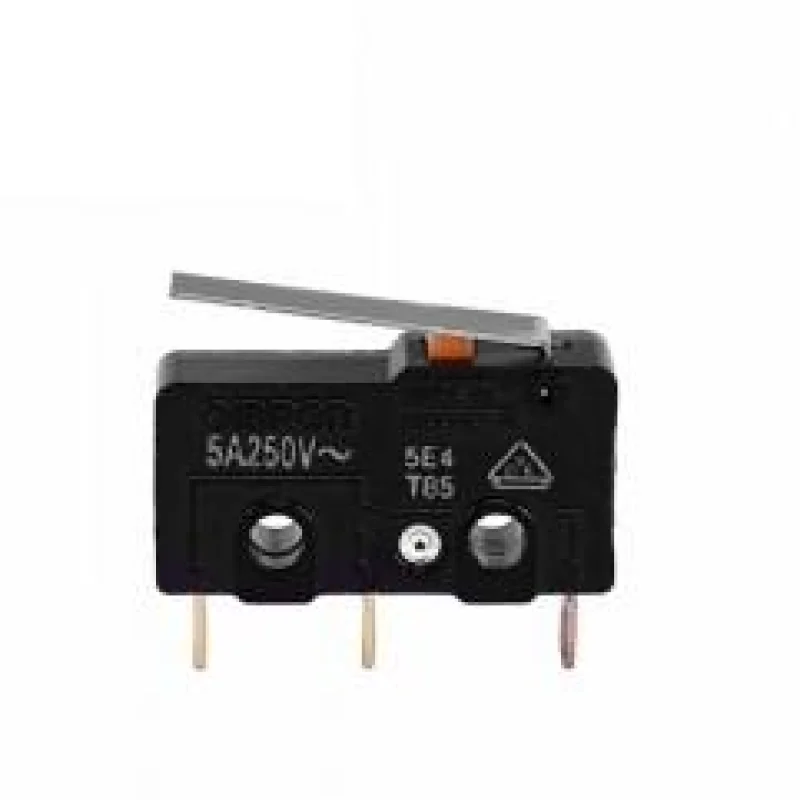

The SS-5GL Micro Limit Switch is a compact snap-action switch designed for precise position detection in mechanical and electronic systems. It features an SPDT contact configuration with a 5A current rating at 125V AC, ensuring reliable switching performance. Built with a durable internal mechanism, it provides fast response and long operational life under repeated actuation. This switch is suitable for automation systems, 3D printers, robotics, and safety interlock applications.
Features
- SPDT contact configuration for flexible circuit control
- Snap-action mechanism for fast switching response
- Rated current up to 5A at 125V AC
- High mechanical durability for repeated operations
- Compact form factor for tight installations
- Precision actuator for accurate position detection
- Low operating force for sensitive triggering
- Reliable electrical contact stability
- Suitable for low and medium power circuits
- Standard terminal layout for easy wiring
- Durable plastic housing with metal contacts
- Quick response time for automation systems
- Wide compatibility with control circuits and microcontrollers
Specifications
- Model: SS-5GL
- Switch Type: Micro Limit Switch
- Contact Configuration: SPDT (1NO + 1NC)
- Rated Voltage: 125V AC
- Rated Current: 5A
- Contact Resistance: 50 m
- Insulation Resistance: 100 M
- Operating Force: Approx. 0.51.5 N
- Electrical Life: 100,000 cycles
- Mechanical Life: 1,000,000 cycles
- Operating Temperature: -25C to 85C
- Housing Material: High-strength plastic
- Terminal Type: Solder/Quick connect terminals
- Dimensions: Approx. 20 10 6 mm
