Description

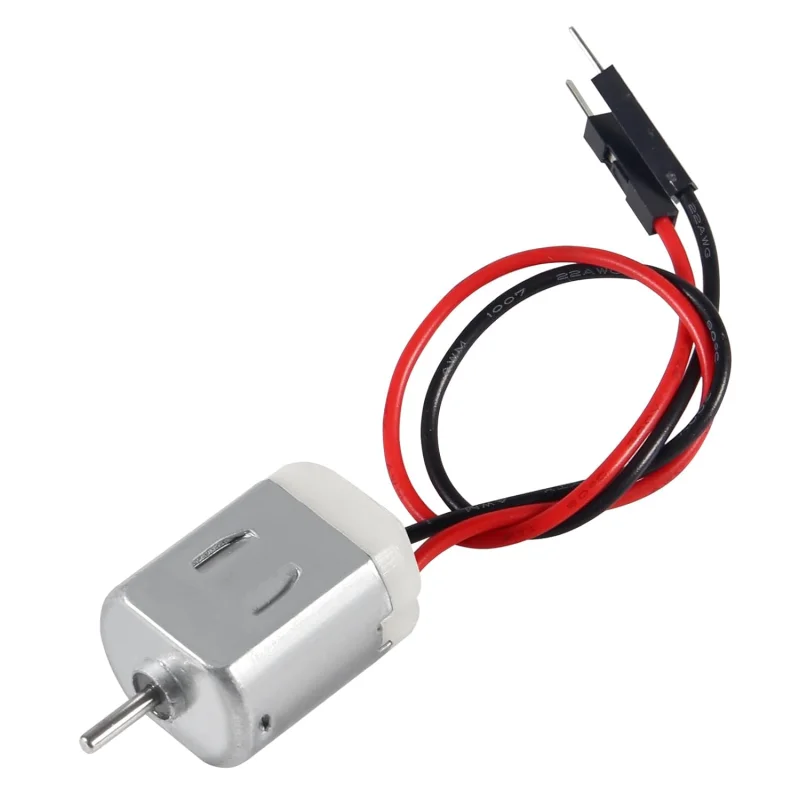

The MR01 small brushed DC motor is a compact and lightweight motor designed for low-voltage applications and embedded systems. It operates at a rated voltage of 3V DC and delivers high rotational speed with stable performance. The motor features low noise operation, efficient power consumption, and a simple cylindrical design for easy integration. It comes with jumper wires for quick connection, making it suitable for prototyping, educational projects, and small robotic systems.
Features
- Compact cylindrical brushed DC motor design
- Operating voltage range 1.5V to 4.5V DC
- High speed up to 16600 RPM (no load)
- Stable rated speed 13100 RPM under load
- Low noise operation for quiet applications
- Lightweight construction around 2025 g
- Shaft diameter 2 mm for standard couplings
- Pre-attached jumper wires for easy connection
- Efficient current consumption design
- Suitable for battery-powered circuits
- Simple integration with Arduino and DIY systems
- Durable structure for long operational life
Specifications
- Operating Voltage: 1.5V 4.5V DC
- Rated Voltage: 3V DC
- No Load Speed: 16600 RPM
- Rated Load Speed: 13100 RPM
- No Load Current: 0.28A
- Rated Load Current: 1.07A
- Rated Torque: 8.0 gcm
- Shaft Diameter: 2 mm
- Motor Diameter: 20 mm
- Motor Length: 25 mm (excluding shaft)
- Motor Type: Brushed DC Motor
- Connection Type: Jumper Wires Attached
- Model: MR01
