Description

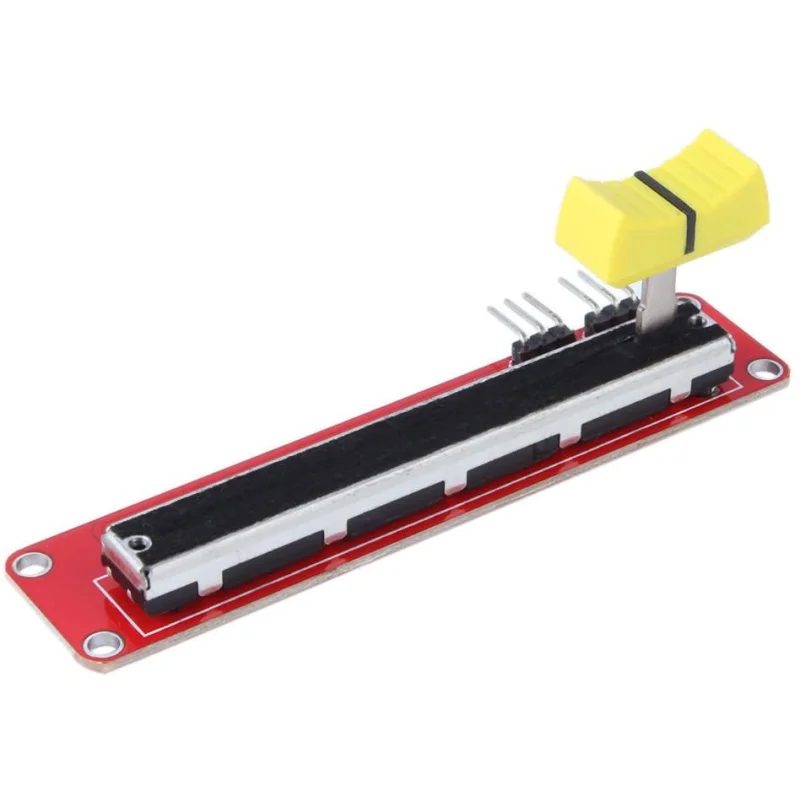

The Slide Potentiometer 10K Linear Module is an analog input module designed for variable resistance adjustment and position sensing applications. It features a 10 k linear slide potentiometer that provides smooth and accurate analog output for microcontroller and embedded system projects. The module supports both 3.3 V and 5 V operating systems, making it compatible with popular development platforms such as Arduino and ESP boards. Its compact PCB layout enables easy integration into control panels, audio systems, robotics, and educational electronics projects.
Features
- 10 k linear slide potentiometer
- Analog voltage output interface
- Compatible with 3.3 V and 5 V systems
- Smooth linear resistance adjustment
- Compact 90 20 mm PCB design
- Suitable for analog signal experiments
- Stable output for embedded applications
- Easy integration with Arduino boards
- Durable sliding mechanism construction
- Red PCB module layout
- Three-pin interface connection
- Suitable for audio control projects
- Ideal for robotics and automation systems
- Supports real-time parameter adjustment
- Designed for prototyping and educational use
Specifications
- Potentiometer Type: Linear slide potentiometer
- Resistance: 10 k
- Operating Voltage: 3.3 V / 5 V
- Output Type: Analog signal
- PCB Color: Red
- Module Length: 90 mm
- Module Width: 20 mm
- Control Method: Manual sliding adjustment
- Interface Type: 3-pin header
- Mounting Type: PCB module
- Signal Compatibility: Analog microcontroller input
- Application Type: Position and level control
- Supported Platforms: Arduino, ESP32, STM32, Raspberry Pi
- Operating Function: Variable voltage divider
- Use Cases: Audio control, robotics, DIY electronics
Links
- Slide Potentiometer 10K Linear Module 3D Model
- Slide Potentiometer 10K Linear Module Datasheet
Tutorials
- Slide/Linear Dual Output Potentiometer
