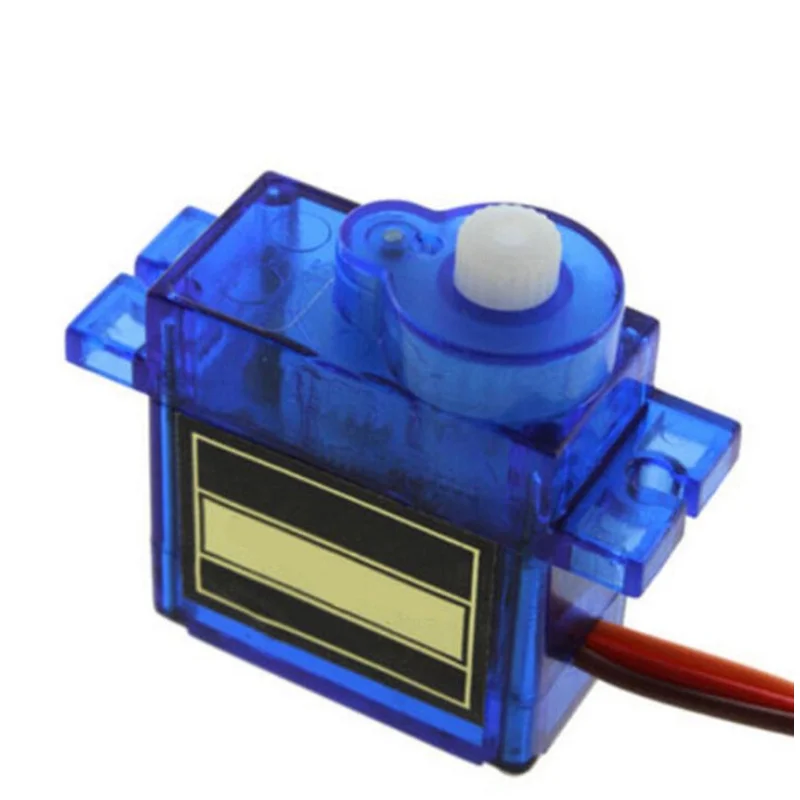

The SG90 Micro Servo Motor is a compact actuator designed for precise angular position control in embedded and mechatronic systems. It operates within a 3.0V to 7.2V range and delivers up to 1 kgcm torque with fast response time. The servo features a standard 3-pin interface for seamless integration with Arduino, Raspberry Pi, and other microcontrollers. Built for consistent performance, it ensures stable operation with low dead band width for accurate positioning. Ideal for robotics, automation systems, and educational prototyping projects.
Features
- Micro servo motor with positional control functionality
- Operating voltage range 3.0V to 7.2V
- Stall torque up to 1 kgcm at 4.8V
- Fast response speed of 0.12 sec per 60
- 180 rotation range for angular positioning
- Low dead band width of 7 s for precision control
- Standard 3-pin interface (VCC, GND, Signal)
- Compatible with Arduino and Raspberry Pi platforms
- Lightweight and compact mechanical design
- Includes single arm, double arm, and four-point horns
- Stable PWM signal control operation
- Plastic gear construction for reduced weight
- Easy integration into embedded systems
- Suitable for educational and prototyping applications
Specifications
- Operating voltage: 3.07.2V DC
- Rated voltage: 4.8V DC
- Stall torque: 1 kgcm @ 4.8V
- Operating speed: 0.12 sec/60 @ 4.8V
- Rotation range: 180
- Dead band width: 7 s
- Control signal: PWM (Pulse Width Modulation)
- Connector type: 3-pin (VCC, GND, Signal)
- Gear type: Plastic gears
- Dimensions: 22 11.5 22.5 mm
- Weight: ~9 g
- Cable length: ~250 mm
- Operating temperature: 0C to 55C
- Compatibility: Arduino, Raspberry Pi, microcontroller platforms
