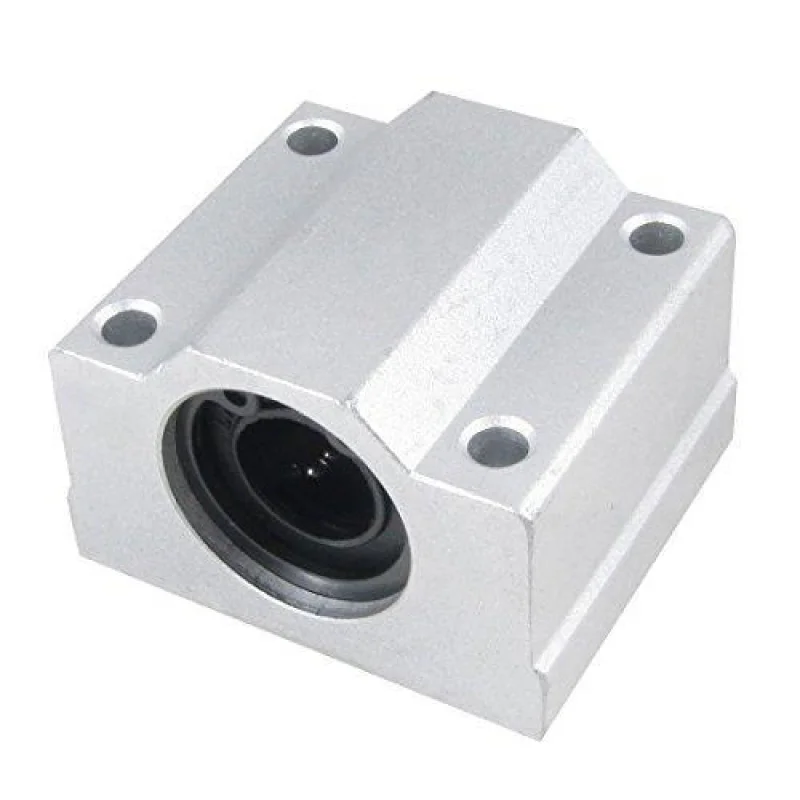

The SC8UU Linear Bearing Block is designed to provide smooth and stable linear motion along an 8 mm shaft. It integrates an LM8UU linear bearing an aluminum housing, ensuring precise movement with reduced friction. The solid block design allows easy mounting using standard screw holes, improving structural stability in mechanical systems. Built for durability and consistent performance, it supports repeated motion under load. Ideal for CNC machines, 3D printers, and linear motion assemblies.
Features
- Integrated LM8UU Linear Bearing for Smooth Motion
- Aluminum Housing for Structural Strength
- Pre-Drilled Mounting Holes for Easy Installation
- 8 mm Shaft Compatibility
- Low Friction Recirculating Ball Mechanism
- High Stability During Linear Movement
- Compact and Rigid Block Design
- Suitable for CNC and 3D Printer Applications
- Corrosion-Resistant Housing Surface
- Uniform Load Distribution
- Reliable Performance Under Repetitive Motion
- Easy Integration with Linear Rod Systems
Specifications
- Inner Diameter (ID): 8 mm
- Bearing Type: LM8UU Linear Bearing
- Housing Material: Aluminum Alloy
- Block Type: SC8UU
- Mounting Hole Count: 4
- Mounting Hole Diameter: 5 mm
- Mounting Hole Spacing: 24 mm 18 mm
- Block Dimensions: 34 mm 30 mm 22 mm
- Shaft Compatibility: 8 mm Linear Rod
- Motion Type: Linear Motion
- Load Type: Radial Load
- Operating Temperature: -20C to 80C
- Lubrication: Pre-lubricated
