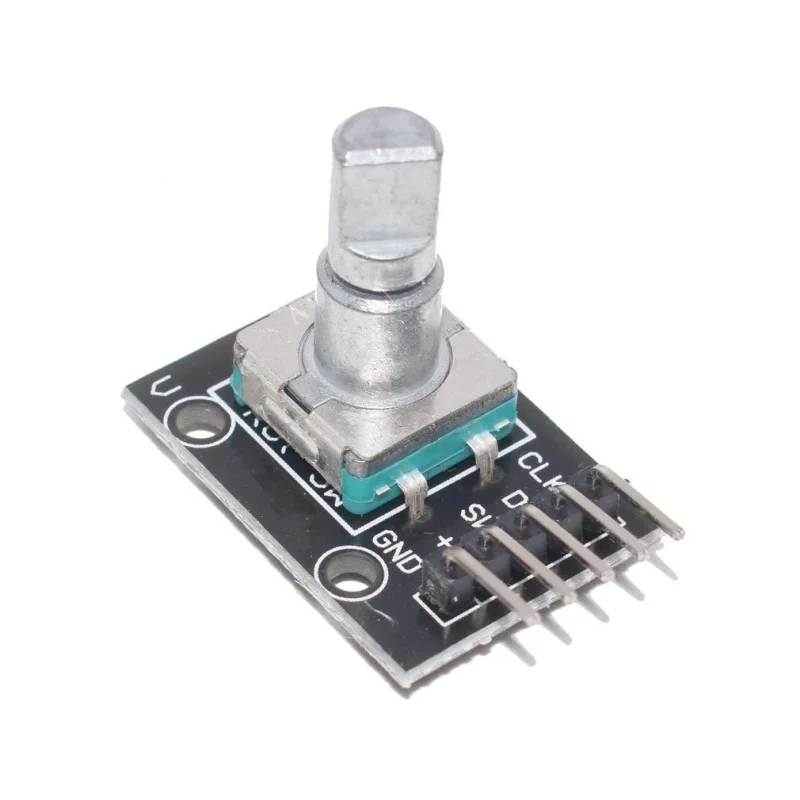

The rotary encoder module is an input device designed for precise rotational control in embedded systems and user interfaces. Unlike potentiometers, it supports continuous 360 rotation without mechanical limits, enabling accurate incremental position tracking. This version features heat-resistant materials and slightly updated dimensions for improved durability. It also includes an integrated push-button switch for additional input functionality. Suitable for menu navigation, parameter adjustment, and control panel applications.
Features
- Incremental rotary encoder for continuous rotation input
- Unlimited 360 rotation without end stops
- Integrated push-button switch for additional control
- Heat-resistant material for improved durability
- Digital pulse output for position detection
- High resolution step-based rotation feedback
- Stable signal output for microcontroller interfacing
- Compact design for embedded applications
- Standard shaft compatible with common knobs
- Suitable for Arduino and similar platforms
- Reliable mechanical structure for repeated use
- Easy integration in control panels and UI systems
Specifications
- Product Type: Rotary encoder module
- Rotation Type: Incremental (continuous rotation)
- Number of Channels: 2 (A and B outputs)
- Switch Type: Integrated push button
- Output Signal: Digital pulse
- Operating Voltage: 3.35V DC
- Material: Heat-resistant plastic and metal
- Shaft Type: Standard round shaft
- Mounting Type: Panel or PCB mount
- Detent Steps: Typically 20 steps per revolution
- Dimensions: Approx. 20mm 20mm 15mm
- Operating Temperature: 20C to 70C
- Compatibility: Arduino, microcontrollers
