Description

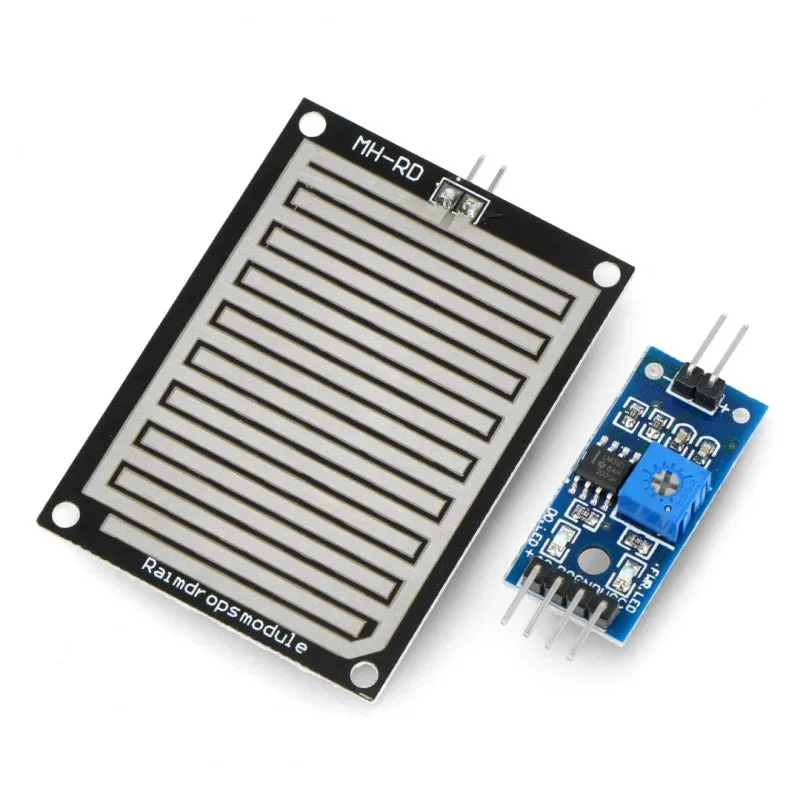

The Raindrops Detection Sensor is an electronic module designed to detect rainfall through a dedicated rain board and a control module based on the LM393 comparator. It provides both analog and digital outputs, allowing flexible integration with microcontrollers and control systems. The sensitivity can be adjusted using an onboard potentiometer to suit different environmental conditions. This sensor is commonly used in automotive systems for automatic windshield wipers, agricultural rain detection, and home automation applications.
Features
- Dual output analog and digital signals
- LM393 voltage comparator based design
- Adjustable sensitivity via onboard potentiometer
- Clean digital output waveform
- Output drive capability over 15 mA
- Anti-oxidation sensing surface
- Long operational lifetime
- Stable 5V DC operation
- Mounting holes for easy installation
- Compact control board design
Specifications
- Operating Voltage: 5V DC
- Output Type: Digital output (0 / 1) and analog output (AO)
- Comparator IC: LM393
- Sensitivity Adjustment: Onboard potentiometer
- Output Drive Current: >15 mA
- Sensing Board Material: Anti-oxidation conductive surface
- Mounting: Bolt holes on control board
- Control Board Size: 32 14 mm
- Operating Environment: Indoor and outdoor compatible
