Description

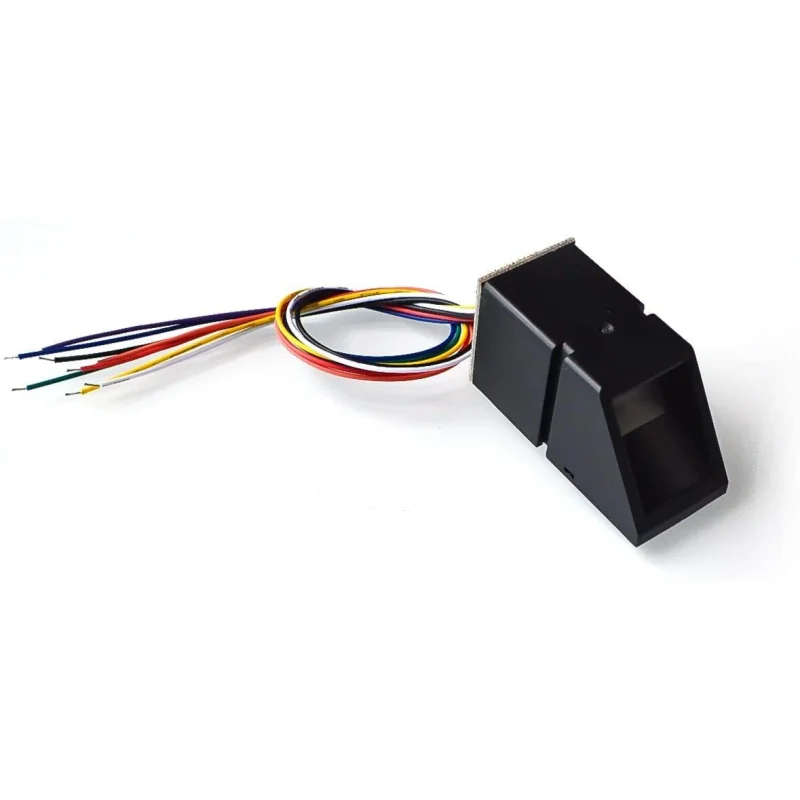

The R307 Optical Fingerprint Sensor is a standalone biometric module designed for fingerprint detection, verification, and identification systems. It integrates an optical imaging sensor with a high-performance DSP processor that handles image acquisition, feature extraction, and template matching internally. The module communicates via TTL UART interface and supports direct fingerprint enrollment and storage in onboard Flash memory. With a 500 DPI resolution sensor and built-in red LED indicator, it ensures accurate image capture and reliable operation. Suitable for access control, safes, attendance systems, and embedded security projects.
Features
- Optical fingerprint imaging sensor
- Integrated DSP processing unit
- 500 DPI image resolution
- TTL UART serial communication
- Onboard Flash memory storage
- Supports fingerprint enrollment and search
- 1:1 matching and 1:N identification modes
- Built-in red LED indicator
- Compact embedded module design
- Low power consumption operation
Specifications
- Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying
- Supply Current: Current: Peak current: Fingerprint image time: Window size: 14 x 18 mm
- Matching mode: Match mode (1:1)
- Search mode (1: N)
- Signature File: 256 bytes
- Template files: 512 bytes
- Storage capacity: 1,000
- Safety level: five (from low to high: 1,2,3,4,5)
- False Accept Rate (FAR): False Reject Rate (FRR): Search time: PC Interface: UART (TTL logic level) or USB2.0 / USB1.1
- Communication baud rate (UART): (9600 x N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)
- Working environment:
- Temperature: -20 to +50
- Relative Humidity: 40% RH-85% RH (non-condensing)
- Storage environment:
- Temperature: -40 to +85
- Split: Fingerprint sensor: 56 x 20 x21.5mm
