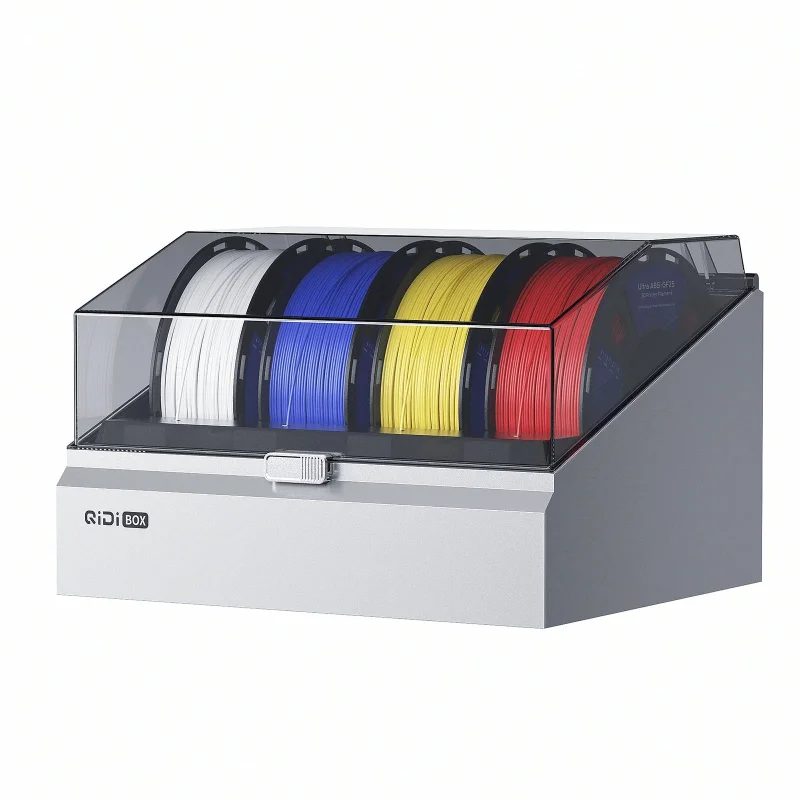

QIDI Box V2
Unleashing Colors, Break Material Limits
16-Color Multi-Material
Chain 4 QIDI Boxes to unlock
16-material freedom
Dual Gears
From tough composites to vibrant colors no compromises
65C Drying
Real-time drying while Printing
NFC
NFC Intelligent Recognition
What can QIDI Box do?
QIDI Box – Your Personal Color Partner
DIYers, Families, Designers – And You
QIDI Box – Break Your Material Limits
Advanced multi-material extrusion redefines what’s possible
Dual-Gear Power for Tough Materials
The hardened steel extrusion system offers long-lasting durability and stable feeding for a wide range of filamentsincluding carbon fiber, fiberglass and composites.
Support Removal Made Simple
The QIDI Box enables snap-away supports or dissolvable filamentschoose the easiest way to get clean prints, every time.
65 Drying While Printing
Always dry, always ready. The QIDI Box ensures stable filament conditions for high-quality prints
Filament Auto-Reload
The QIDI BOX switches spools seamlessly, ensuring nonstop printing and minimal filament waste.
NFC Intelligent Recognition
Automatically matches QIDI Filament settings, no manual input required.
Comprehensive Printing Safety Protection
Combining a smart PTC fuse with dual temperature sensors for real-time monitoring, the system automatically cuts power when detecting abnormal temperatures to ensure safe operation.
| QIDI BOX Technical Specification | ||
| Item | Specification | |
| Body | Dimensions | 357*300*234 mm |
| Package Dimensions | 360*400*295mm | |
| Net Weight | 4.35kg | |
| Gross Weight | 6.15kg | |
| Housing Material | ABS/PC | |
| Number of Slots | 4 | |
| Expandable number | 4 | |
| Filament Channel Indicator Lights | 4 individual indicator lights, one for each filament channel | |
| Feed Gear | Hardened Steel Dual Gears | |
| Filament Feeding Motors | 4 42-stepper motors | |
| Exhaust Vent | Manual | |
| Printing | Filament Supported | PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS,TPU 64D, ABS-CF/GF, PLA-CF/GF, PETG-CF/GFPPS-CFPET-CF/GF |
| Filament Not Supported | TPE, Generic TPU, PVA (damp), BVOH (damp), TPU 95A, QIDI PAHT-CF and other overly rigid or overly flexible filaments | |
| Filament Diameter | 1.75 mm | |
| Spool Dimension | Width: 50 mm-72 mm Diameter: 195 mm-202 mm |
|
| RFID Identification | Supported | |
| Filament Monitoring | Supports tangle detection, clog detection, and run-out detection | |
| Auto Filament Refill | Automatically switches to backup spool when filament runs out | |
| Multi-color Printing | Supported up to 16 colors (requires additional QIDI BOX and accessories, sold separately) | |
| Filament Drying | Supported and Support Simultaneous Drying and Printing | |
| Drying | Maximum Temperature | 65 |
| Filament Supported | PLAABSASAPAPCPETPETGPPSPLA Wood | |
| Sealed Storage | Supported | |
| Temperature and Humidity Detection | Supported, Real-time Temperature and Humidity can be Displayed on the Screen and QlDl Studio. | |
| Desiccant Storage | Supported | |
| Power Supply | Voltage | 110V / 220240V AC, 50/60Hz (region-specific models available) |
| Max Rated Power | 245W |
For specific compatibility specifications and details, please refer to the official link:https://wiki.qidi3d.com/en/QIDIBOX
