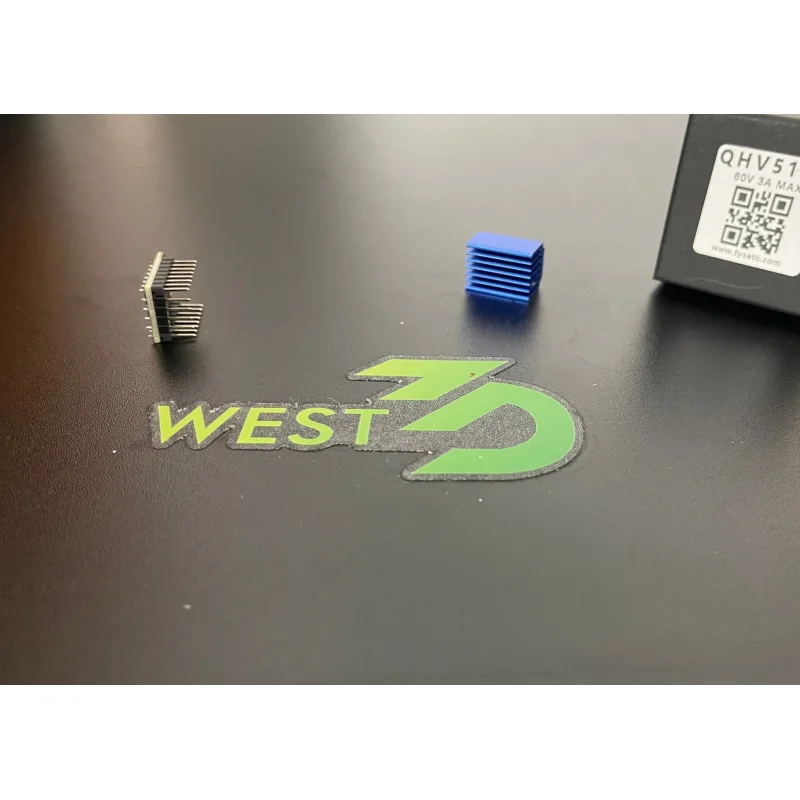

QHV5160 60V Stepper Motor Driver / Drivers (FYSETC)

Description

Hv5160 is specially designed for high voltage drive requirements and can work in the voltage range of 8-60v, such as 48V.

The 100V X7R 0805 ceramic capacitor based on tmc5160-wa and Samsung Electronics is designed.

1000 x 600mil / 25.4 x 15.24mm

6 layer TG155 PCB

8-60V 3.0A (rms) / 4.2A (peak)

4x DMT6018 (17 m)

Step/Dir interface & SPI mode default

Compatible with Stepstick Pins

Encoder Interface pinout

DIAG output for sensorless homing

Comes with blue aluminum heat sink
