Description

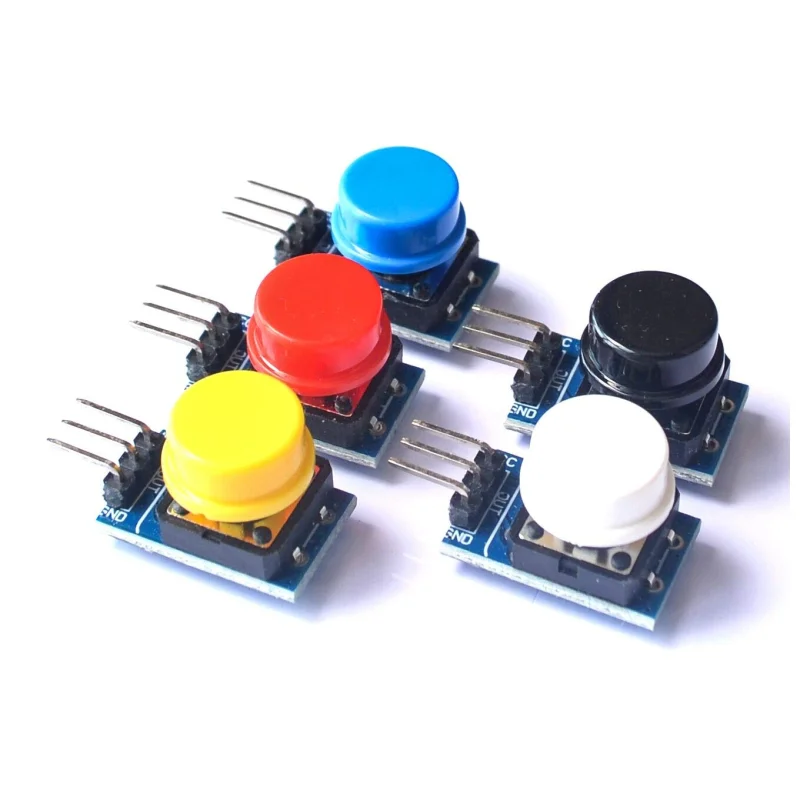

The Push Button Module is a compact digital input module designed for Arduino and embedded system applications. It features a simple 3-pin interface (Signal, VCC, Ground) and supports operating voltages of 3.3V to 5V. Built for stable and reliable input detection, it ensures consistent performance in prototyping and control systems. The modules compact 11 22 mm size allows easy integration into breadboards and PCB designs. Ideal for user input interfaces, control panels, and interactive electronics projects.
Features
- Digital push button input module
- 3-pin interface S V G configuration
- Compatible with Arduino and microcontrollers
- Operating voltage 3.3V to 5V
- Compact PCB design for space-saving integration
- Stable signal output for reliable detection
- Onboard resistor for signal conditioning
- Easy connection using standard jumper wires
- Durable tactile push button switch
- Fast response for real-time input applications
- Suitable for breadboard and PCB mounting
- Low power consumption design
- Plug-and-play integration with development boards
Specifications
- Product Type: Push Button Module
- Interface Type: 3-Pin (Signal, VCC, Ground)
- Operating Voltage: 3.3V5V DC
- Output Type: Digital Signal
- Button Type: Tactile Momentary Switch
- PCB Dimensions: 22mm x 11mm
- Mounting Type: Through-hole / Breadboard Compatible
- Signal Logic: Active Low (typical configuration)
- Connector Pitch: 2.54mm
- Material: FR4 PCB
- Operating Temperature: -20C to 70C
- Compatibility: Arduino, ESP32, Raspberry Pi, Microcontrollers
