Description

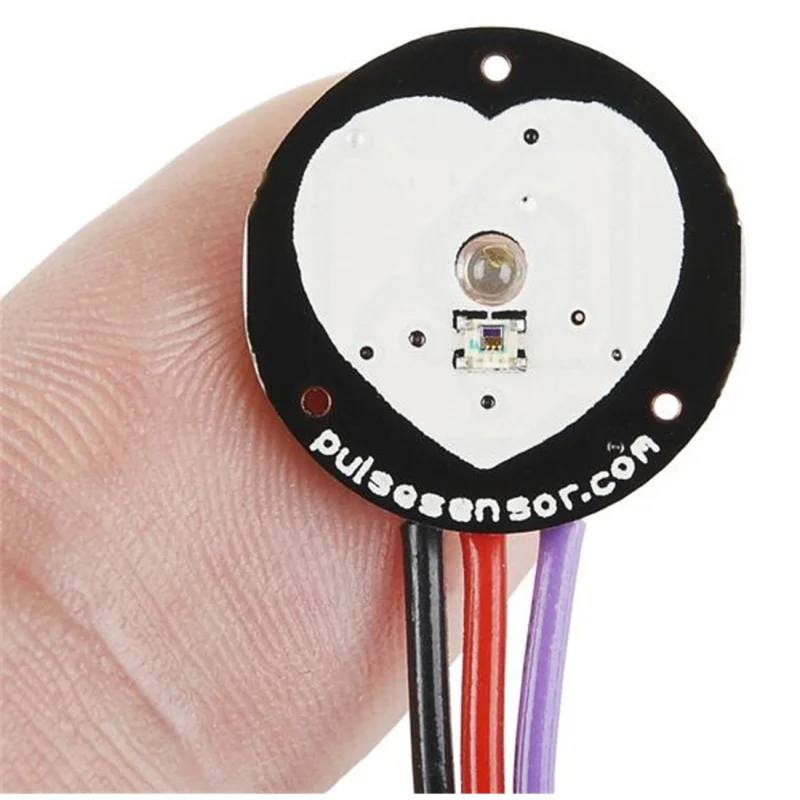

The Pulse Sensor Amped is a plug-and-play heart rate sensor module designed for Arduino and compatible microcontrollers. It integrates amplification and noise cancellation circuitry to deliver stable and accurate pulse readings. Operating at 35V DC with low current consumption, it is suitable for direct connection to analog inputs. The 609 nm wavelength LED enables reliable photoplethysmography measurements. Ideal for wearable projects, biofeedback systems, and interactive health monitoring applications.
Features
- Integrated amplification factor of 330
- Onboard noise cancellation circuitry
- Operating voltage 35V DC
- Low operating current 4 mA
- 609 nm wavelength LED source
- Analog signal output for microcontrollers
- Plug-and-play with Arduino boards
- Compact and lightweight circular PCB
- Fast pulse detection response
- Compatible with wearable applications
Specifications
- Operating Voltage: 35V DC
- Operating Current: 4 mA
- Amplification Factor: 330
- Wavelength: 609 nm
- Output Type: Analog Signal
- Sensor Type: Photoplethysmography (PPG)
- Board Shape: Circular PCB
- Interface: 3-Pin Header (VCC, GND, Signal)
- Signal Conditioning: Onboard Amplifier and Noise Filter
- Compatibility: Arduino and 35V Microcontrollers
Links
- Pulse Sensor Amped Heart Rate Sensor 3D Case
- Pulse Sensor Amped Heart Rate Sensor Module Datasheet
- Pulse Sensor Amped Heart Rate Sensor Module Schematic
