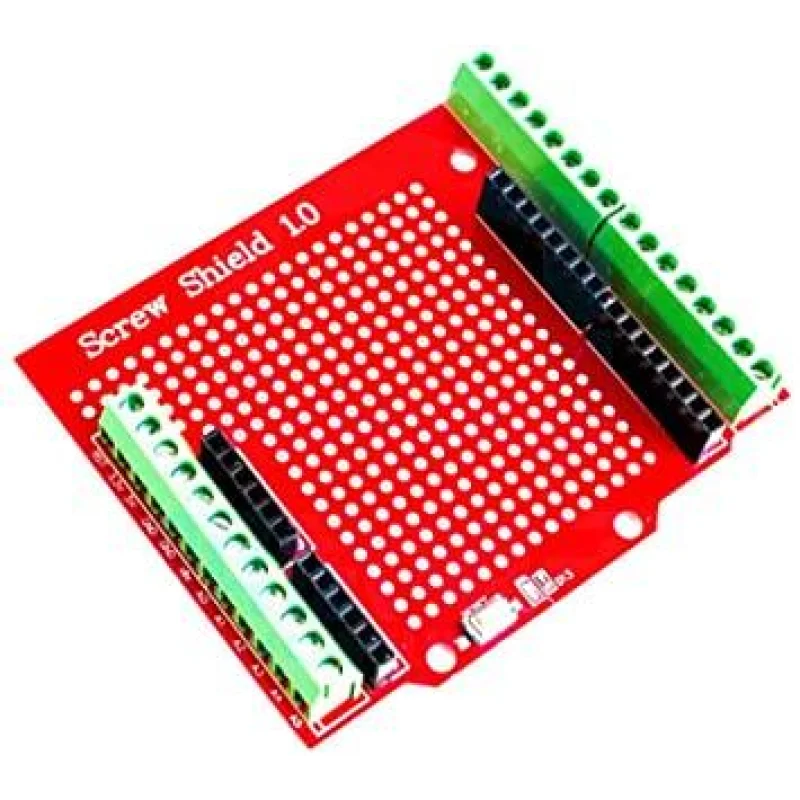

The Proto Screw Shield Expansion Board for Arduino is a versatile expansion board designed to combine custom circuit prototyping with secure screw terminal connections for Arduino-based projects. It provides an onboard through-hole prototyping area for building custom circuits directly on the shield while exposing all Arduino I/O pins through convenient screw terminals and headers. This design simplifies wiring for sensors, modules, and power connections, making it ideal for rapid development, testing, and semi-permanent installations in embedded systems and automation projects.
Features
- Integrated prototyping area for custom circuit building
- Screw terminal blocks for secure wire connections
- Arduino-compatible shield stacking design
- Access to all Arduino I/O pins
- Power distribution rails for organized wiring
- Through-hole grid layout for standard components
- Easy sensor and module connection
- Suitable for permanent and semi-permanent setups
- Simplifies debugging and prototyping
- Reliable wire clamping terminals
- Compatible with breadboard-style components
- Strong PCB construction
- Ideal for industrial and educational projects
- Compact shield format
Specifications
- Product Type: Prototyping Expansion Shield
- Connection Type: Screw Terminals and Pin Headers
- Compatibility: Arduino Uno and Compatible Boards
- Logic Voltage: 5V (Arduino Compatible)
- Mounting Type: Arduino Shield Stackable
- Prototyping Area: Through-Hole Grid Layout
- Terminal Type: Screw Terminal Blocks
- Pin Access: Full Arduino I/O Breakout
- Power Lines: 5V, 3.3V, GND, VIN
- PCB Material: FR-4
- Dimensions: 68mm 53mm
- Application Type: Prototyping and Secure Wiring
