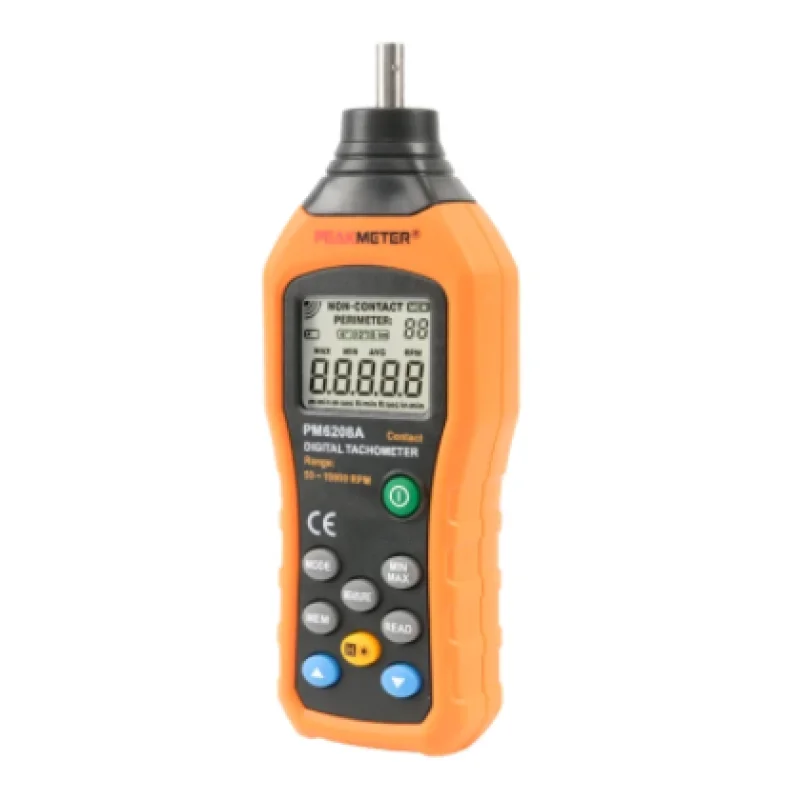

PM6208A Digital Tachometer Non-Contact RPM Meter

Description

Description

The PM6208A Digital Tachometer is a non-contact measurement instrument designed for accurately measuring rotational speed in motors, fans, shafts, and rotating machinery. Built around a high-speed integrated processing chip, it delivers reliable performance and precise RPM measurements without physical contact with the rotating object. The device features a backlit LCD display for operation in low-light environments, data logging for up to 100 measurements, and MAX/MIN/AVG functions for comprehensive analysis. Its compact design and multiple speed unit selections make it suitable for industrial maintenance, laboratory testing, and equipment diagnostics.

Features

• Non-contact RPM measurement using optical sensing technology
• Measurement range from 50 to 9999 RPM
• High-accuracy measurement performance
• Backlit LCD display for low-light operation
• Data logging storage for up to 100 records
• MAX, MIN, and AVG measurement functions
• Multiple speed unit selections available
• Data hold function for convenient reading
• Automatic power-off after 30 seconds of inactivity
• Compact and portable handheld design
• Low battery indication function
• Suitable for motors, fans, and rotating machinery
• High-speed integrated processing chip
• Reliable performance for maintenance and diagnostics
• Designed for industrial and laboratory applications

Specifications

• Model: PM6208A

• Product Type: Digital Tachometer

• Measurement Method: Non-Contact Optical Measurement

• Measurement Range: 509999 RPM

• Measurement Accuracy: (0.03% + 2 Digits)

• Measuring Distance: 50250 mm

• Data Logging Capacity: 100 Groups

• Display Type: LCD Display with Backlight

• MAX/MIN/AVG Function: Yes

• Data Hold Function: Yes

• Unit Selection: m/min, m/sec, ft/min, ft/sec, in/min

• Auto Power Off: 30 Seconds

• Low Battery Indicator: Yes

• Application: Rotational Speed Measurement and Diagnostics
• Power Supply 4×1.5AAA Battery (Not Included)
