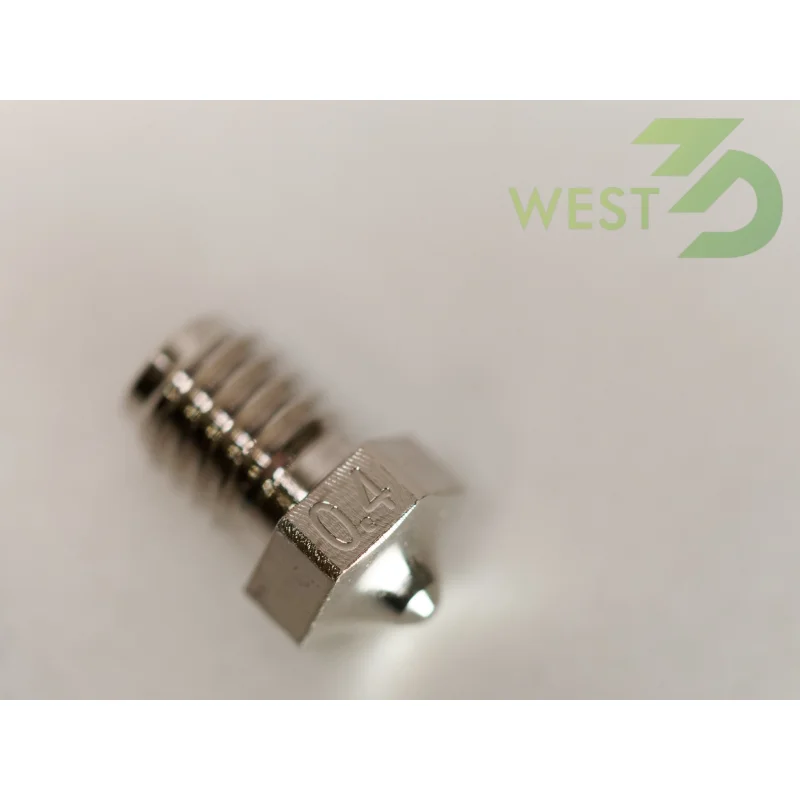

Phaetus Plated Copper Nozzles for V6 Style Hot Ends

Description

• Performance
  Analysis

  Temperature resistance up to 500, the best choice for special engineering plastics such as PEEK.
  High thermal performance keeps an even temperature of nozzle tip during printing, thus guaranteeing a stable extrusion; Meanwhile, further improves printing speed without sacrificing the quality.
  Special processing technology and post-treatment make the nozzle without burr at the edge of tip and debris in the hole.
  Inner hole roughness lower than Ra0.4 and the whole nozzle nickel plated, enhanced higher smoothness and less adhesion.
  Superior quality copper alloy with high strength and high thermal conductivity ensures the stability of performance.

  Applicable
  Filament

  Working well for high temperature applications, printing with materials such as PEEK, PEKK, PEI, PSU, PPSU and etc.

  Product
  Features

  0.25

  Min. Orifice Diameter

  0.01mm

  Tolerance

  Ra0.4m

  Inner Hole Roughness

  0.02mm

  Concentricity
