Description

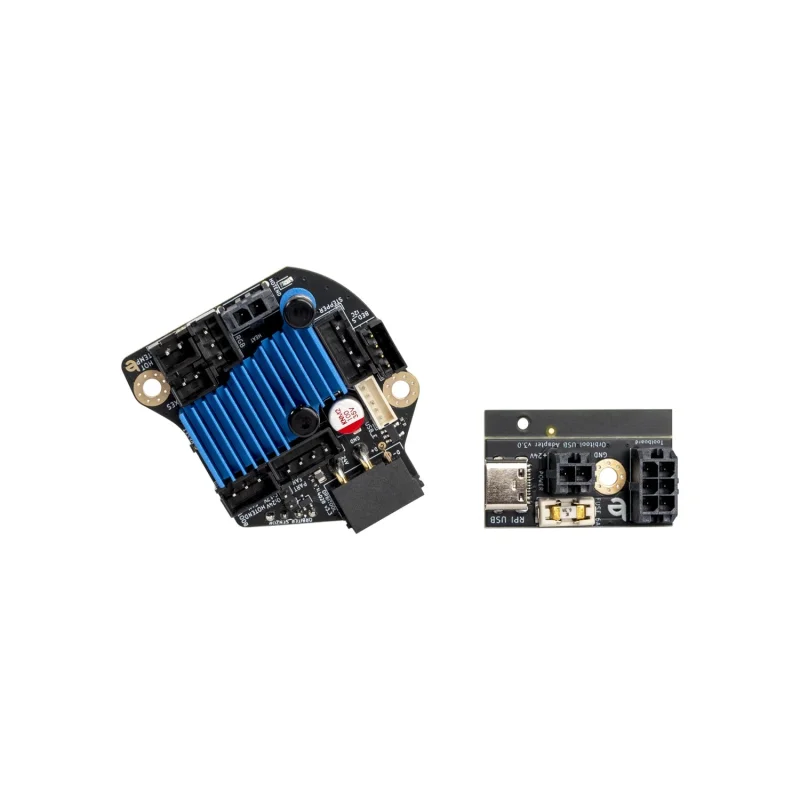

You asked, and it’s here! A PCB optimized for Orbiter featuring the orbiter sensor, accelerometer for input shaping, a TMC2209 (TMC2240 for O2S) stepper driver all with USB communication – it’s kind of nice.
Should a tool-board magic smoke come out because of user error? Why?
Should a tool-board be destroyed by a fault in your 3D printer? Why?
The answer is NO!And this is what this tool-board is all about!
We are hobbyists, and lets face it, we do mistakes, and when the magic smoke shows up everybody is disappointed, even if we know its a user fault. In this board, I promise you the magic smoke is kept inside extremely tight!
Some of the main features:
Optimized for Orbiter v2 and SO3 shape and features including orbiter sensor
STM32F042 microcontroller running on 48MHz
Automotive USB communication with Raspberry PI
Onboard LIS2DW12 accelerometer
The new O2S for Orbiter 2
This is the second revised version of the Orbiter O2 toolboard.
Some of the main features:
Optimized for Orbiter v2, v2.5 shape and features, including orbiter sensor
STM32F072 microcontroller running on 48MHz – full klipper support with automatic update possibility
Automotive USB communication with Raspberry PI
One auxiliary USB connector for bed scanner, nozzle camera, or other inteligent USB connected accessory
Onboard ADXL345 accelerometer
TMC2240 extruder stepper driver – for better thermal behavior
Direct connection to Orbiter v2 sensor
PWM 4,3,2 wire part fan output, compatible with 12/24V fan types with RPM speed input signal
DC-DC converter based Hot-end fan driver, compatible with 12/24V fan types with RPM speed input signal
Hot-end temperature sensor input compatible with standard NTC or PT1000 temperature sensor types
I2C for bed level sensing and scanning
X-Stop sensor input
RGB LED driver output
Onboard temperature sensor
Advanced thermal management system
GitHub for Orbitool O2S
Manual for Smart Orbiter 3
