Description

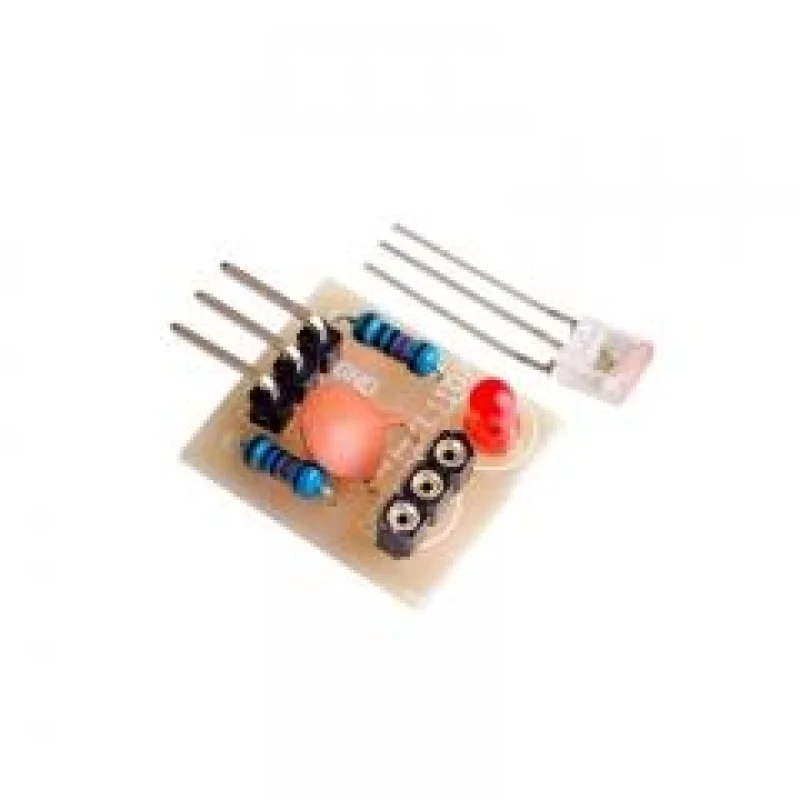

The Non-Modulator Laser Receiver Sensor is a compact optical detection module designed to receive direct laser signals and convert them into a digital output. It operates at 5V DC and provides a HIGH output when a laser signal is detected and a LOW output when no signal is present. The sensor is optimized for simple digital interfacing with microcontrollers and control systems. Its small PCB size makes it suitable for space-constrained designs. This module is ideal for laser detection, optical triggering, and basic communication or alignment applications.
Features
- Non-modulated laser signal detection
- Digital HIGH/LOW output response
- 5V DC operating voltage
- Fast response to laser input
- Compact PCB size for small projects
- Direct microcontroller interfacing
- Stable signal output
- Simple two-state logic operation
- Low power consumption
- Suitable for indoor laser detection
Specifications
- Operating Voltage: 5V DC
- Output Type: Digital (HIGH / LOW)
- Output Logic: HIGH when laser detected
- Output Logic (Idle): LOW when no laser detected
- Laser Type: Non-modulated laser
- Response Type: Direct optical detection
- PCB Size: 15 mm 19 mm
- Mounting Type: PCB mount
- Signal Interface: Digital output pin
- Application Environment: Indoor use
