Description

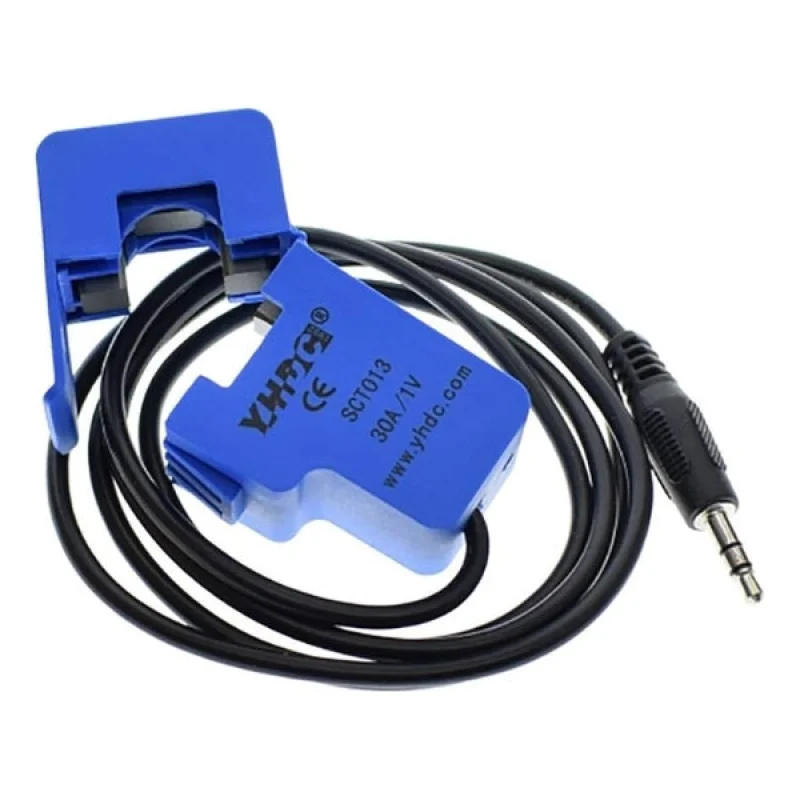

The SCT-013 Non-Invasive Current Sensor is a split-core current transformer designed for measuring AC current up to 30A without direct electrical contact. It converts the measured current into a proportional voltage output (30A:1V), enabling safe monitoring of electrical loads. The ferrite-core design provides stable measurement performance with strong electrical insulation and 6000V dielectric strength. This sensor can be clipped directly around a live or neutral wire, eliminating the need to cut or modify the circuit. It is widely used in energy monitoring systems, smart power meters, and building electricity consumption measurement projects.
Features
- Split-core current transformer for non-invasive AC current measurement
- Measures AC current up to 30A
- Current-to-voltage output ratio 30A : 1V
- Ferrite magnetic core for stable sensing performance
- Clip-on design for quick installation without cutting wires
- High dielectric strength up to 6000V AC insulation
- UL94-V0 flame-retardant housing material
- Wide operating temperature range 25C to 70C
- Suitable for energy monitoring and smart metering systems
- Long 105cm output cable for flexible installation
- High mechanical durability with 1000+ opening cycles
- Compatible with Arduino and energy monitoring platforms
Specifications
- Current Type: AC Current Transformer
- Maximum Measured Current: 30A
- Output Signal: 1V at 30A
- Core Material: Ferrite
- Sensor Type: Split Core Non-Invasive CT
- Opening Size: 13mm 13mm
- Dielectric Strength: 6000V AC / 1 min
- Flame Retardant Rating: UL94-V0
- Operating Temperature: 25C to 70C
- Mechanical Life: 1000 opening cycles
- Cable Length: 105cm
- Application: Energy monitoring and power measurement systems
Links
- Non-Invasive Current Sensor SCT-013 Datasheet
- ESP8266 Mains Power Sensor 3D Model
Tutorials
- SCT-013 Current Measuring with ESP8266
