Description

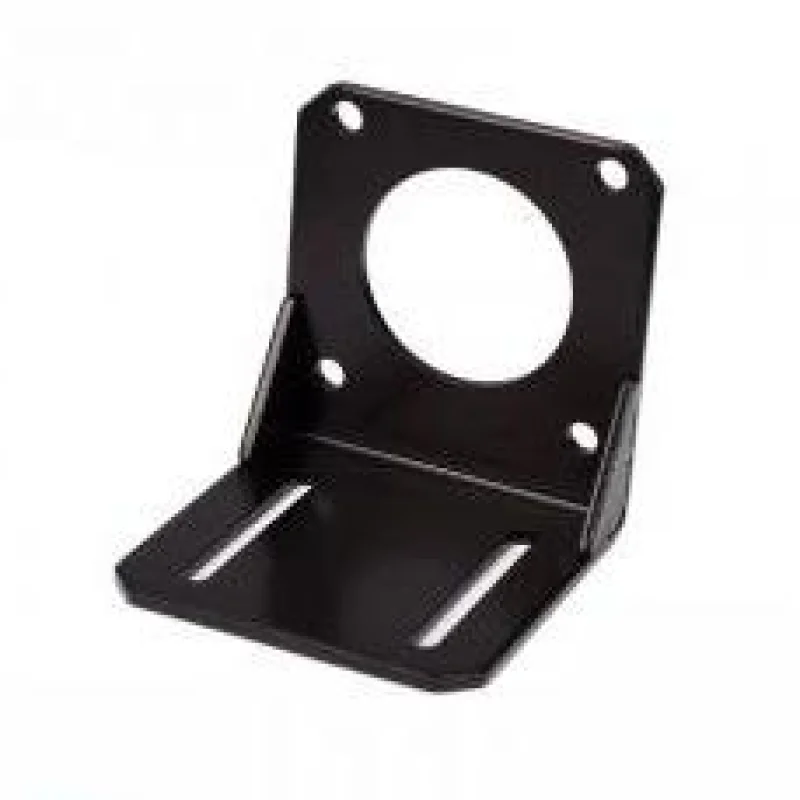

The NEMA 17 Stepper Motor Mounting Bracket is a precision-machined aluminum bracket designed for secure and stable motor installation. Made from 3 mm thick black anodized aluminum, it provides strong mechanical support while minimizing vibrations and structural flex. The bracket is fully compatible with standard NEMA 17 faceplate mounting hole patterns, ensuring easy integration into robotic and motion systems. Its rigid construction enhances system reliability and alignment accuracy. Ideal for CNC machines, 3D printers, and robotics projects requiring stable motor positioning.
Features
- 3 mm thick anodized aluminum construction
- NEMA 17 standard mounting hole compatibility
- Lightweight design approximately 15 g
- Rigid structure for reduced vibration
- Black anodized surface for corrosion resistance
- Precision-machined mounting holes
- Stable motor alignment support
- Compact L-shaped bracket design
- Suitable for vertical and horizontal mounting
- Durable metal build for long-term use
- Easy integration into mechanical assemblies
- Supports high-precision motion systems
- Compatible with common stepper motor setups
- Improves structural stability in robotic applications
Specifications
- Material: Anodized aluminum
- Thickness: 3 mm
- Color: Black
- Weight: 15 g
- Compatibility: NEMA 17 stepper motors
- Mounting Type: Faceplate mounting
- Hole Type: Pre-drilled precision holes
- Bracket Shape: L-type mounting bracket
- Surface Finish: Anodized coating
- Corrosion Resistance: Yes
- Application Type: Motor mounting support
- Installation Orientation: Vertical and horizontal
- Structural Rigidity: High
- Vibration Reduction: Yes
