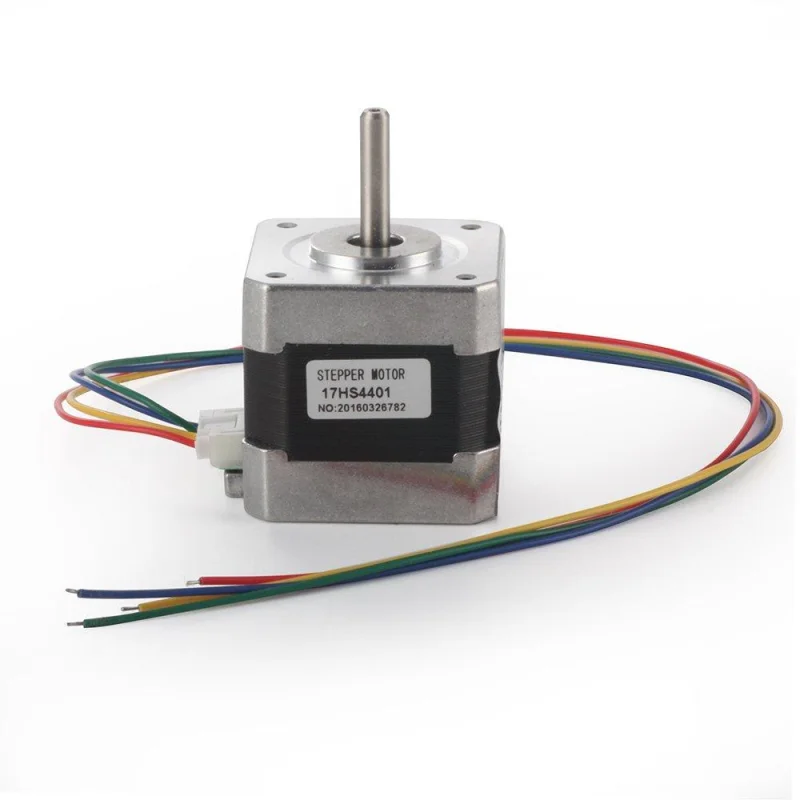

NEMA 17 Stepper Motor 12V 1.7A 40Ncm Torque

Description

Description

The NEMA 17 Stepper Motor is a 2-phase bipolar motor designed for precise motion control in robotics and automation systems. It features a 1.8 step angle with 200 steps per revolution, providing accurate positioning and smooth rotation. With a holding torque of 40 Ncm and a rated current of 1.7A per phase, it delivers stable and consistent performance under load. The motor is built with high insulation resistance and standard 4-wire connectivity for reliable operation. It is suitable for CNC machines, 3D printers, and embedded motion control applications.

Features

• 2-phase bipolar stepper motor design

• 1.8 step angle for precise positioning

• 200 steps per revolution resolution

• Holding torque rated at 40 Ncm

• Rated current 1.7A per phase

• Operating voltage 12V DC

• High insulation resistance 100 M minimum
• 4-wire configuration for driver compatibility

• Standard NEMA 17 mounting size

• Stable torque output at low speeds

• Suitable for microstepping control

• Durable construction for continuous operation

Specifications

• Motor Type: Bipolar stepper motor

• Step Angle: 1.8

• Steps per Revolution: 200 steps

• Number of Phases: 2 phase

• Rated Voltage: 12V DC

• Rated Current: 1.7A per phase

• Holding Torque: 40 Ncm

• Insulation Resistance: 100 M min (500V DC)

• Wire Configuration: 4-wire (Red A+, Green A-, Yellow B+, Blue B-)

• Cable Length: 400 mm

• Frame Size: NEMA 17 (42 42 mm)

• Step Accuracy: 5% (no load)
