Description

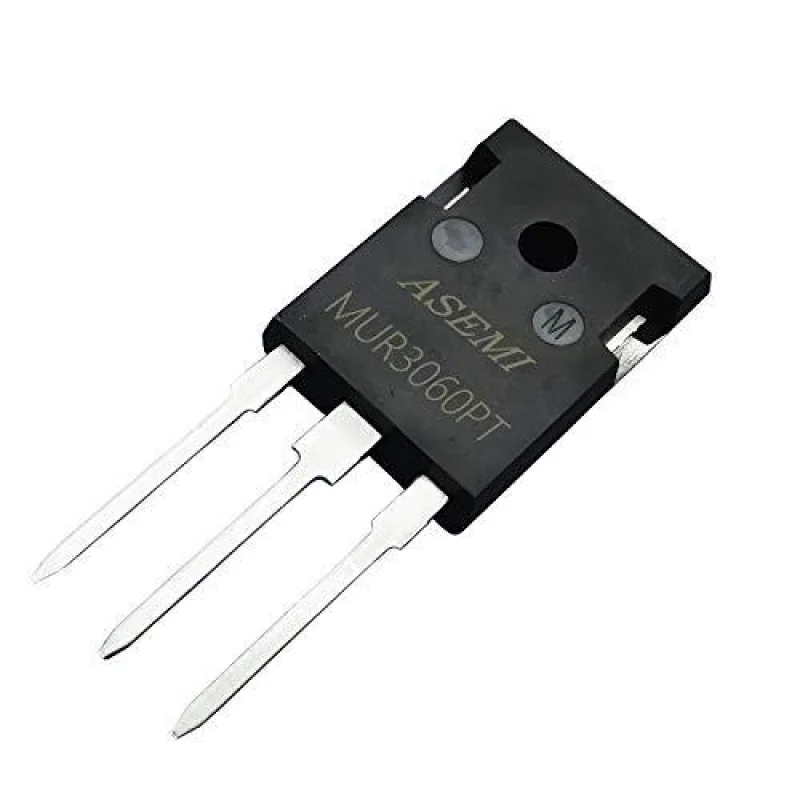

The MUR3060PT is a high-current fast recovery rectifier diode designed for high-frequency power conversion and rectification applications. It features a low reverse recovery time that helps reduce switching losses and improve efficiency in switch-mode power supplies, inverters, and freewheeling circuits. The device supports high forward current operation with a repetitive reverse voltage rating of 600V for demanding power electronics designs. Housed in a TO-247 package, it provides efficient thermal dissipation and reliable through-hole mounting for industrial and power control applications.
Features
- Fast recovery rectifier design for high-frequency switching circuits
- 30A average forward current capability
- 600V repetitive reverse voltage rating
- Low reverse recovery time of 60ns typical
- Low forward voltage drop reducing conduction losses
- High surge current handling up to 300A
- TO-247 package for efficient heat dissipation
- Suitable for switch-mode power supplies
- Optimized for inverter and converter applications
- Reliable operation at high switching frequencies
- Through-hole mounting for secure installation
- Wide operating temperature range up to 150C
- High efficiency rectification performance
- Durable construction for industrial power systems
Specifications
- Model: MUR3060PT
- Device Type: Fast Recovery Rectifier Diode
- Maximum Repetitive Reverse Voltage: 600V
- Average Forward Rectified Current: 30A
- Peak Forward Surge Current: 300A
- Reverse Recovery Time (Typical): 60ns
- Forward Voltage Drop (Typical): 1.3V
- Operating Temperature Range: -55C to 150C
- Package Type: TO-247
- Mounting Type: Through-hole
- Polarity Configuration: Dual Diode Common Cathode
- High Frequency Operation: Supported
- Application Type: Power Rectification and Freewheeling
- Thermal Performance: Optimized for heatsink mounting
- RoHS Compliance: Yes
