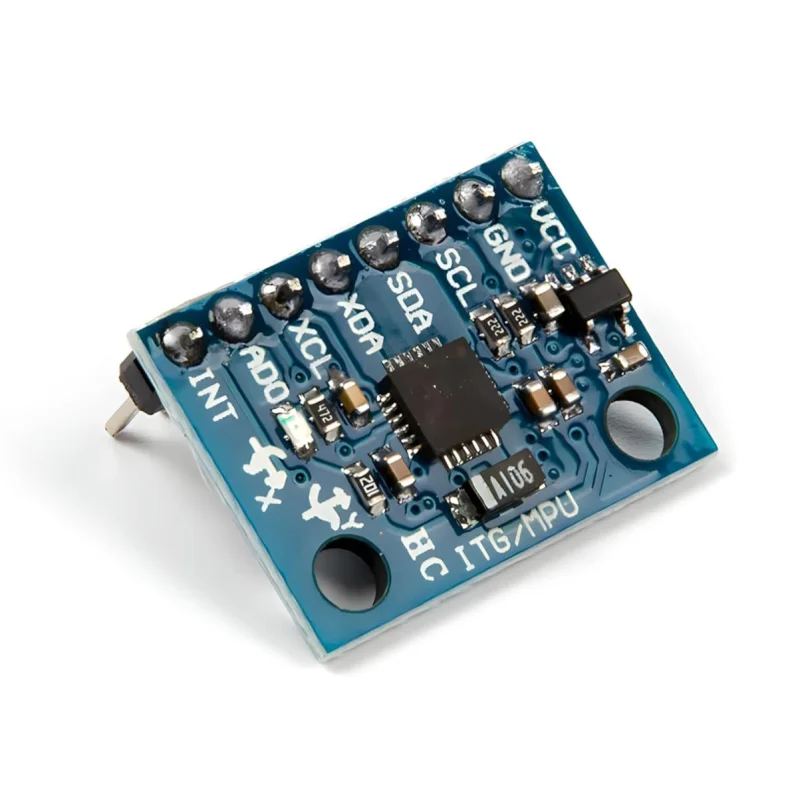

MPU-6050 6-Axis Gyro Accelerometer Module – I2C Interface

Description

Description

The MPU-6050 6-Axis Gyro Accelerometer Module is a PCB-mounted motion sensing module integrating a 3-axis gyroscope and a 3-axis accelerometer in a single chip. It features a built-in 16-bit ADC and Digital Motion Processor (DMP) for accurate motion tracking and sensor fusion. The module supports selectable acceleration ranges of 2, 4, 8, and 16 g, and gyroscope ranges of 250, 500, 1000, and 2000 /s. It operates at 35 V and communicates via a simple I2C interface. With compact dimensions of approximately 20 15 mm, it is suitable for robotics, drones, wearable devices, and embedded motion control applications.

Features

• 6-Axis Motion Sensor integrating 3-axis gyroscope and 3-axis accelerometer

• Digital Motion Processor (DMP) for onboard motion processing and sensor fusion

• 16-Bit ADC providing high-resolution motion data output

• Selectable Acceleration Ranges of 2, 4, 8, and 16 g

• Selectable Gyroscope Ranges of 250, 500, 1000, and 2000 /s

• I2C Communication Interface for simple integration with microcontrollers

• 35 V Operating Voltage suitable for common embedded platforms

Specifications

• Sensor Type | 6-Axis Motion Sensor (3-Axis Gyroscope + 3-Axis Accelerometer)

• Model | InvenSense MPU-6050

• Acceleration Range | 2 g, 4 g, 8 g, 16 g

• Gyroscope Range | 250, 500, 1000, 2000 /s

• Resolution | 16-Bit Digital Output

• Motion Processor | Integrated Digital Motion Processor (DMP)

• Communication Interface | I2C

• Operating Voltage | 35 V

• Board Dimensions | Approx. 20 15 mm

• Mounting Type | PCB Interface Module

Links

• MPU-6050 Datasheet
• Voltaat Tutorial
• Tutorial from instructables.com
• 3D model from grabcad.com
