Description

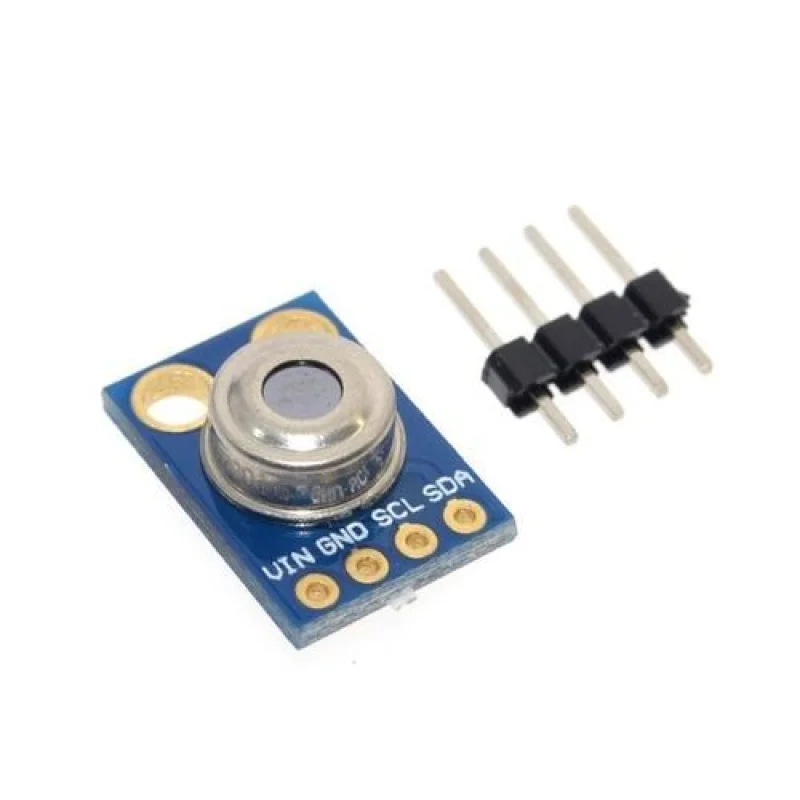

The MLX90614 is an infrared thermometer designed for non-contact temperature measurements of objects and ambient surfaces. It integrates an IR-sensitive thermopile detector and a signal-conditioning ASIC within a TO-39 metal package, including a low-noise amplifier, 17-bit ADC, and onboard DSP to deliver high accuracy and resolution. This breakout board version allows simple interfacing with microcontrollers using the I2C protocol and operates from a 3 V to 5 V supply. It is well suited for embedded systems, automation, and thermal monitoring applications requiring contactless sensing.
Features
- Non-contact infrared temperature measurement
- Integrated thermopile sensor and signal-conditioning ASIC
- 17-bit ADC with onboard DSP processing
- I2C digital communication protocol
- Wide object temperature sensing range
- Measures both object and ambient temperature
- Low operating current consumption
- 3 V to 5 V supply voltage compatibility
- Compact breakout board design
- Factory calibrated for accurate readings
Specifications
- Operating Voltage: 35 V DC
- Operating Current: 2 mA
- Communication Protocol: I2C
- Sensor Operating Temperature: 40 C to +125 C
- Object Temperature Range: 70 C to +380 C
- Sensing Range: Up to 1 cm
- Sensor Package: TO-39 metal can
- Measurement Type: Non-contact infrared
- ADC Resolution: 17-bit
- Calibration: Factory calibrated
Links
- MLX90614 Datasheet
- Adafruit MLX90614 library for Arduino, Github
- MLX90614 Non-Contact Infrared Temperature Sensor 3D Model
- Bracket for MLX90614
Tutorials
- Tutorial from Adafruit
- MLX90614 Non-contact Infrared Temperature Sensor with Arduino.
- How to Connect MLX90614 Infrared Thermometer to Raspberry Pi Pico W: MicroPython Tutorial!
