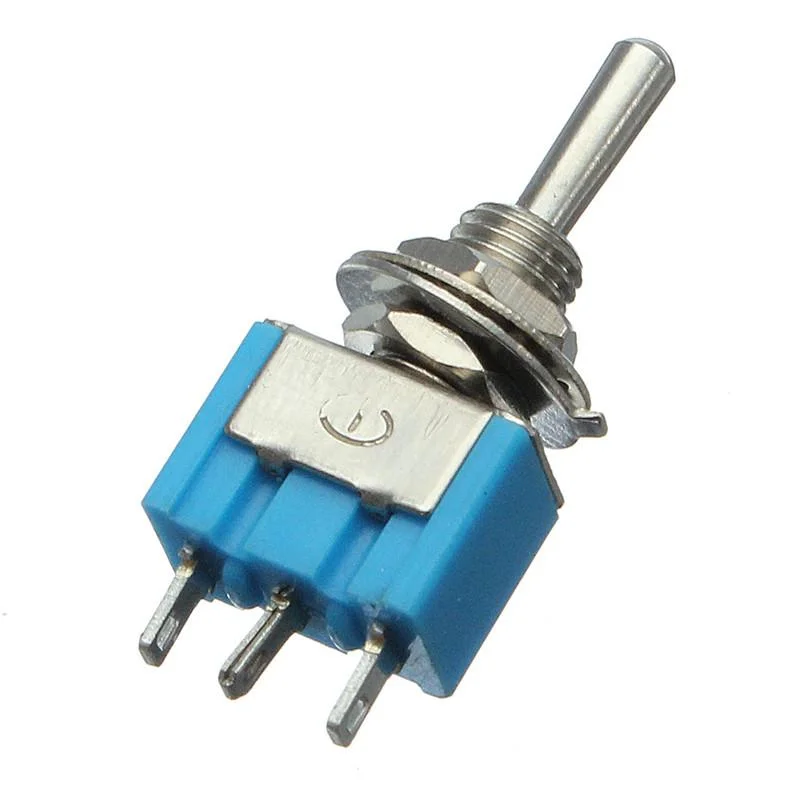

The Mini Toggle Switch is a compact SPST (Single Pole Single Throw) switch designed for basic ON/OFF control in electrical circuits. It features a simple 2-position toggle mechanism with reliable contact switching for stable performance. Rated at 3A 125VAC or 6A 125V, it supports low to moderate power applications. The switch includes a mounting face plate and threaded nuts for secure panel installation, making it suitable for control panels, DIY electronics, and embedded systems.
Features
- SPST switching mechanism for simple ON/OFF control
- 2-position toggle operation
- 3-pin terminal configuration
- Rated 3A at 125VAC
- Rated 6A at 125V
- Compact mini toggle design
- Panel mount with threaded nuts included
- Standard 6 mm mounting hole size
- Durable metal lever actuator
- Stable electrical contact performance
- Easy integration into circuits
- Suitable for AC and DC applications
Specifications
- Switch Type: SPST (Single Pole Single Throw)
- Actuator Type: Toggle lever
- Switch Positions: 2 Position (ON-OFF)
- Number of Pins: 3 Pins
- Rated Voltage: 125V AC
- Rated Current: 3A @ 125V AC
- Rated Current (DC): 6A @ 125V
- Mounting Hole Diameter: 6 mm
- Mounting Type: Panel mount
- Terminal Type: Solder terminals
- Contact Material: Copper alloy
- Insulation Resistance: 100 M
- Operating Temperature: -20C to 85C
- Mechanical Life: 10,000 cycles
- Electrical Life: 5,000 cycles
