Description
Description

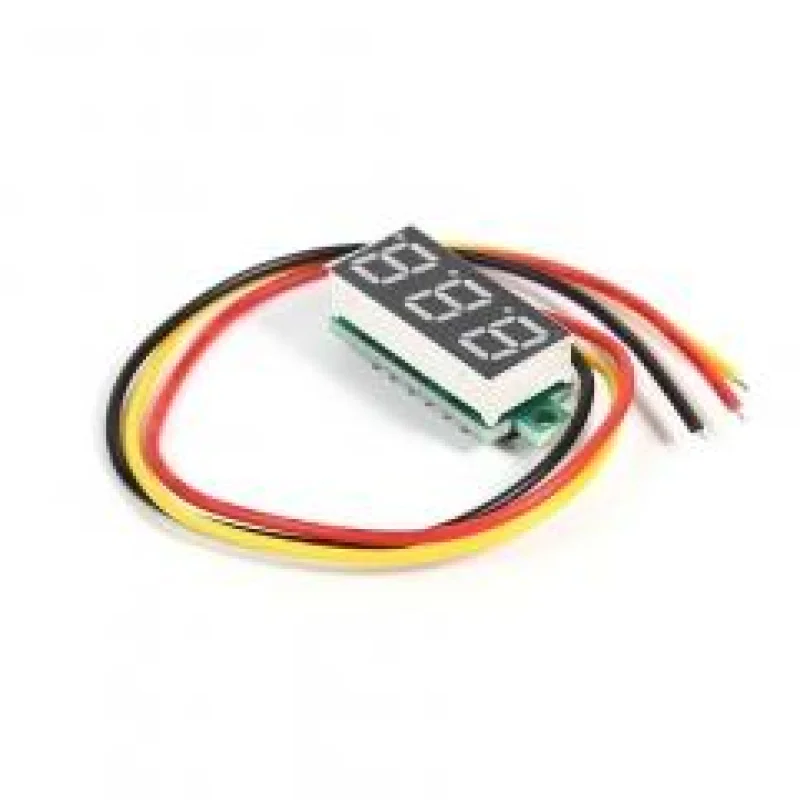

The Mini DC Digital Voltage Meter is a compact panel-mount instrument designed for real-time DC voltage monitoring in electronic and power systems. It features a bright three-digit LED display and operates directly from the measured voltage source, eliminating the need for an external power supply. With a measurement range of 3.5V to 30V DC, fast refresh rates, and compact dimensions, it is suitable for battery packs, power supplies, DIY electronics, and embedded monitoring applications. Its simple two-wire connection enables quick and reliable installation in space-constrained projects.
Features
-
Real-time DC voltage monitoring
-
No external power supply required
-
Three-digit LED display
-
Compact panel-mount design
-
Operates directly from measured voltage
-
Measurement range from 3.5V to 30V
-
Fast 500ms refresh rate
-
Low-profile installation
-
High visibility digital readout
-
Simple two-wire connection
-
Suitable for battery monitoring
-
Ideal for power supply projects
-
Lightweight compact construction
-
Reliable voltage measurement
-
Easy integration into electronic systems
Specifications
- Display Type: Three 0.28-inch LED Digital Tubes
- Measurement Range: DC 3.530
- Operating Voltage: DC 3.530V
- Minimum Input Voltage: 3.5V
- Maximum Input Voltage: 30V
- Measurement Accuracy: (1% + 2 Digits)
- Refresh Rate: Approximately 500ms
- Power Supply Method: Directly Powered by Measured Voltage
- Connection Type: Two-Wire
- Lead Wire Length: 100 mm
- Display Color: Red LED
- Product Dimensions: 30 12 8.5 mm
- Mounting Hole Distance: 26 mm
- Operating Temperature: -10C to 65C
- Installation Type: Panel Mount
- Weight: Lightweight Design
