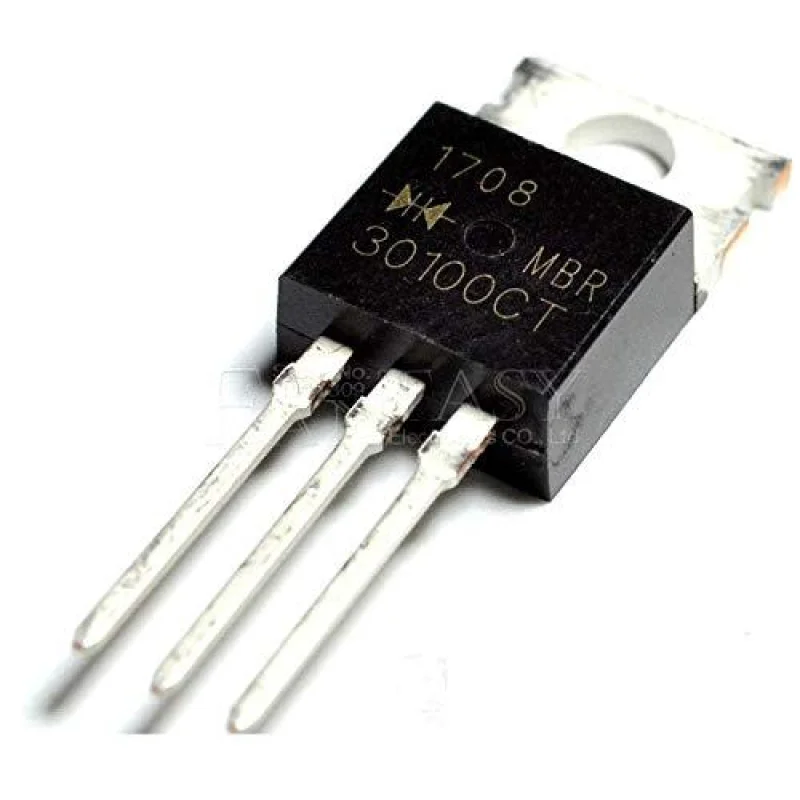

The MBR30100CTG is a dual Schottky barrier rectifier diode designed for high-efficiency power conversion and switching applications. It features a 100V reverse voltage rating and 30A average forward current capability with low forward voltage drop for reduced power loss. The device supports high-frequency operation and fast switching performance in power supply and rectification circuits. Built with guardring protection technology and housed in a TO-220 package, it provides reliable thermal performance and stable operation in demanding electronic designs. Ideal for switch-mode power supplies, DC-DC converters, polarity protection, and freewheeling applications.
Features
- Schottky barrier rectifier structure
- 100V peak reverse voltage
- 30A average forward current capability
- Low forward voltage drop
- High-frequency switching operation
- Low power loss design
- High efficiency rectification
- Guardring overvoltage protection
- High surge current capability
- Dual common cathode configuration
- TO-220 through-hole package
- UL 94 V-0 flame retardant epoxy
- RoHS compliant lead-free finish
- Moisture Sensitivity Level 1
- Suitable for power supply applications
Specifications
- Low Power Loss, High Efficiency
- Guardring for Overvoltage Protection
- Low Forward Voltage Drop And High Frequency Operation
- Lead Free Finish/RoHS Compliant(Note 1) (“P” Suffix Designates Compliant. See Ordering Information)
- Halogen Free Available Upon Request By Adding Suffix “-HF”
- Epoxy Meets UL 94 V-0 Flammability Rating
- Moisture Sensitivity Level 1
- Maximum Recurrent Peak Reverse Voltage 100V
- Maximum RMS Voltage 70V
- Maximum DC Blocking Voltage 100V
