Description
Description

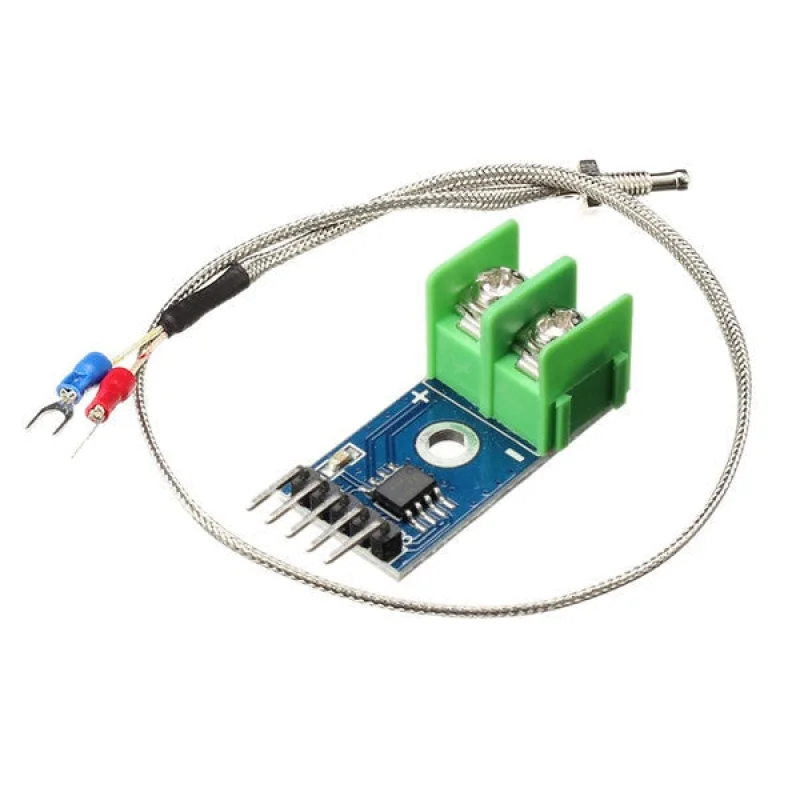

The MAX6675 is a digital thermocouple interface module designed for accurate high-temperature measurement using K-type thermocouples. It integrates cold-junction compensation and a precision amplifier, providing direct digital temperature output via SPI without requiring analog inputs. The module operates at 3.05.5 V and ensures stable performance across a wide temperature range. Its compact form factor and simple pin interface make it suitable for embedded systems and microcontroller-based projects. Ideal for industrial monitoring, laboratory experiments, and temperature control applications.
Features
- MAX6675 thermocouple-to-digital converter
- Supports K-type thermocouples only
- Integrated cold-junction compensation
- SPI digital output interface
- 12-bit temperature resolution
- Wide measurement range up to 1024 C
- 3.05.5 V power supply compatibility
- Stable operation for embedded systems
Specifications
- Operating Voltage: 3.05.5 V DC
- Operating Current: 50 mA
- Thermocouple Type: K-Type only
- Temperature Measurement Range: 0 C to 1024 C
- Operating Temperature: 20 C to 85 C
- Resolution: 12-bit digital output
- Interface: SPI (GND, VCC, SCK, CS, SO)
- Cold Junction Compensation: Integrated
- Dimensions: 25 15 mm
Links
- MAX6675 IC Datasheet
- MAX6675 SPI Thermocouple Amplifier and Thermocouple 3D Module
Tutorials
- Temperature Sensor with Arduino – K-Thermocouple Sensor MAX6675 Module
- Multiple Max6675 Arduino, Industrial Temperature Monitor using K type thermocouple & Oled display
