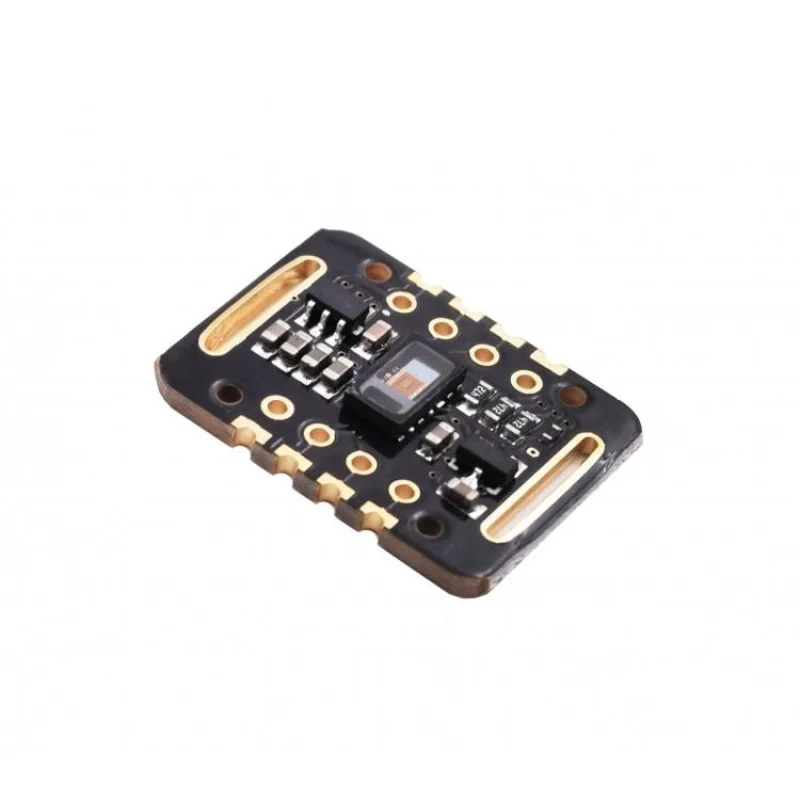

The MAX30102 Pulse Oximeter and Heart Rate Sensor is a compact optical biosensing module designed for measuring blood oxygen saturation (SpO2) and heart rate in embedded and wearable applications. It integrates red and infrared LEDs, photodetectors, optical components, and low-noise analog front-end electronics with ambient light rejection. Operating from a 1.8V core supply and 3.35V LED supply, it communicates via a standard I2C interface. The device supports software shutdown with zero standby current, making it suitable for battery-powered systems such as wearable devices, fitness monitors, and mobile platforms.
Features
- Integrated Red and IR LEDs (660 nm / 880 nm)
- Onboard Photodetector and Optical Elements
- Low-Noise Analog Front-End with Ambient Light Rejection
- I2C Digital Communication Interface
- 1.8V Core Supply Operation
- 3.35V LED Supply Compatibility
- Software Shutdown with Zero Standby Current
- Compact PCB Design 20.3 15.2 mm
- Wide Operating Temperature Range
- Suitable for Wearable and Mobile Devices
Specifications
- Core Operating Voltage: 1.8V DC
- LED Supply Voltage: 3.35V DC
- Communication Interface: I2C
- LED Peak Wavelength (Red): 660 nm
- LED Peak Wavelength (IR): 880 nm
- Operating Temperature Range: -40C to +85C
- Module Dimensions: 20.3 15.2 mm
- Weight: 1.1 g
- Shutdown Mode Current: 0 A (software shutdown)
- Application Type: SpO2 and Heart Rate Monitoring
Links
- MAX30102 Datasheet
- MAX30102 Arduino Library
- MAX30102 Pulse Oximeter And Heart Rate Sensor 3D Model
Tutorials
- Pulse Oximeter! Measure Heart Rate and Oxygen Saturation using Max30102, Arduino and Oled Display
- MAX30102 Raspberry pi | Pulse Oximeter Sensor Interfacing with Raspberry PI
