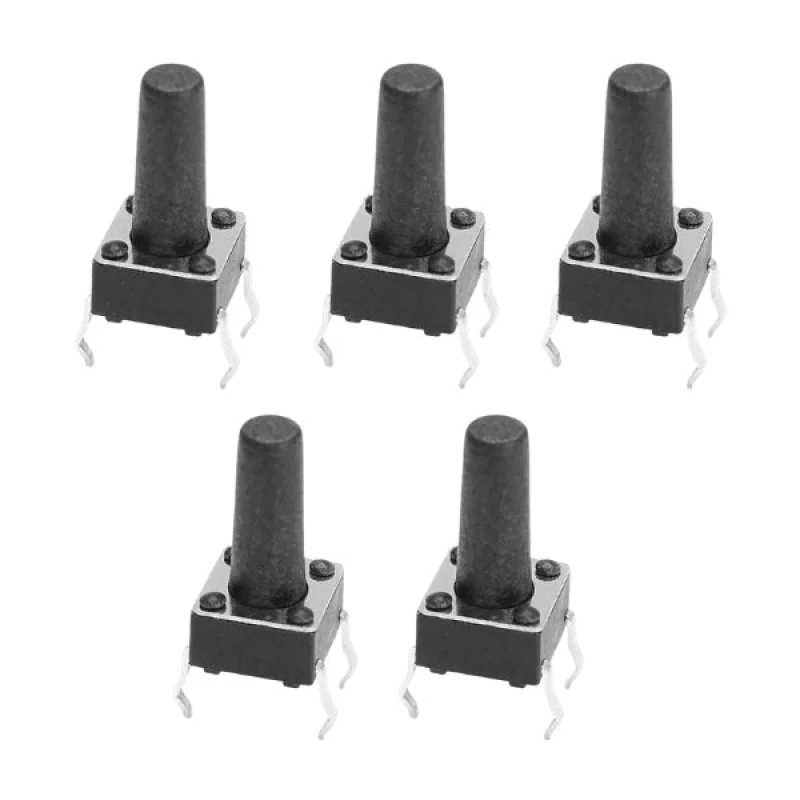

Long Head Momentary Push Button Switch 6mm (5 Pack)

Description

Description

The Long Head Momentary Push Button Switch is a compact tactile switch designed for low-voltage electronic circuits, embedded systems, and DIY control interfaces. It features a 6 6 mm body with an extended actuator for improved accessibility and reliable tactile feedback during operation. Rated for 12V DC and 50mA current handling, the switch provides stable momentary contact performance for prototyping and PCB-mounted applications. Its compact through-hole design makes it suitable for control panels, development boards, robotics projects, and custom electronic devices.

Features

• Long head actuator for improved button accessibility

• Momentary tactile switch operation

• Compact 6 6 mm PCB footprint

• Rated for 12V DC applications

• Supports up to 50mA current load

• Reliable tactile feedback mechanism

• Through-hole mounting design

• High insulating resistance performance

• 250V AC withstand voltage rating

• Suitable for embedded electronics projects

• Compatible with prototype and custom PCBs

• Durable mechanical switch structure

• Ideal for control panels and user interfaces

• Pack includes 5 push button switches

Specifications

• Switch Type: Momentary tactile push button

• Actuator Type: Long head

• Current Rating: 50mA

• Voltage Rating: 12V DC

• Insulating Resistance: >100M @ 250V DC

• Withstand Voltage: 250V AC for 1 minute

• Mounting Type: Through-hole

• Body Dimensions: 6 6 12 mm

• Contact Configuration: SPST Normally Open

• Operating Action: Momentary

• Housing Material: Plastic and metal contacts

• Switch Feedback: Tactile click response

• Application Type: PCB switching and control input

• Package Quantity: 5 switches
