Description

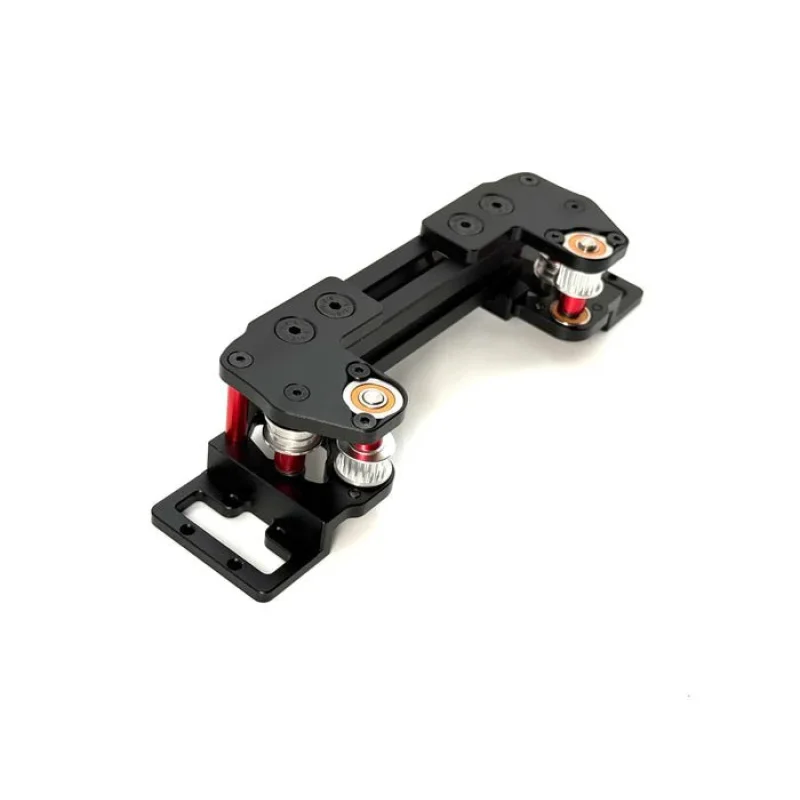

Live idler XY joints for v2.4 and Trident.Machined from 6061 aluminium, with precision pins machined from stainless steel and press fit toothed idler.
Revision 1.1
- Now compatible with Carbon Fiber beam
- Countersunk M5 screws for better rigidity
Assembling Instructions
Why Live Idlers
Unlike idlers with built-in bearings, live idlers use a freely rotating shaft supported by bigger bearings in the joint itself. This design offers several advantages:
- Improved Durability Traditional bearing-integrated idlers rely on small, pressed-in bearings that wear out quickly under constant belt tension. Live idlers shift the load to larger, more robust bearings in the assembly, extending service life.
- Higher Load Capacity By decoupling the pulley from the bearing, live idlers can handle higher belt tension and side-loads without deforming or binding.
- Smoother Motion With reduced friction and more precise alignment, live idlers minimize belt drag and improve motion accuracy, which translates into cleaner prints.
- Easier Maintenance When a bearing eventually wears, you replace only the standard bearing in the joint, not a specialized idler pulley. This makes servicing simpler and cheaper.
- Better Alignment Live idlers ensure consistent tracking of belts since the rotating element runs concentric with the shaft, avoiding wobble or tilt that can occur with small pressed-in bearings.
Features
- Minimalistic but very rigid design
- Precisely machined stainless steel pins
- Custom made toothed idlers that match GT2 and GT3 belts
- Press fit toothed idlers provide perfect concentricity and save space
Contents
- Aluminium parts for left and right joints
- 2 shaft with idlers
- 4 low profile M3x3mm
- 4 BHSCS M3x8mm bolts
- 4 precision M5x1mm shims
- Colored spacers
- OPTIONAL8 F695 Bearings
