Light Controlled Relay Modules

Description

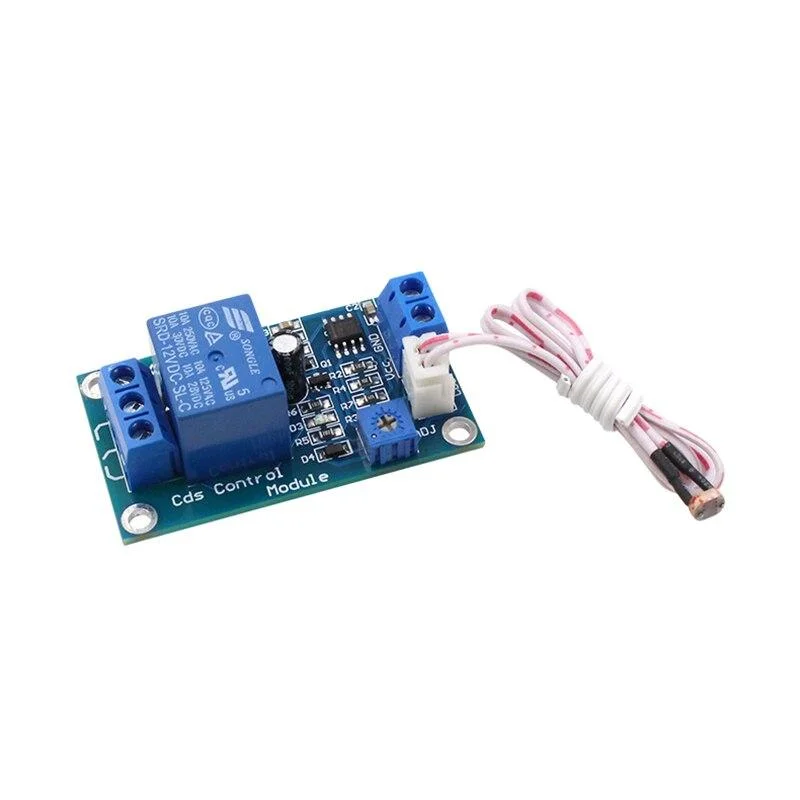

This a ready to use model that is powered by a 12V DC source to turn off and on relay based on the amount of the sunlight detectedby the photo cell that comes with the model. Light threshold can be adjusted by potentiometer to set the relay start.

Speciations

• Input:12V
• Load capacity: 10A / AC 250V or DC up to 30V
• RED LED ON: Indicate the Power ON
• BLUE LED ON: Relay is working
• Module output terminal has three ports
• Normally open ( NO )
• Common terminal ( COM )
• Normally closed ( NC )
• Size: 30MM*53MM
• ModelXH-M131
