Leviathan MCU Expansion Board

Description

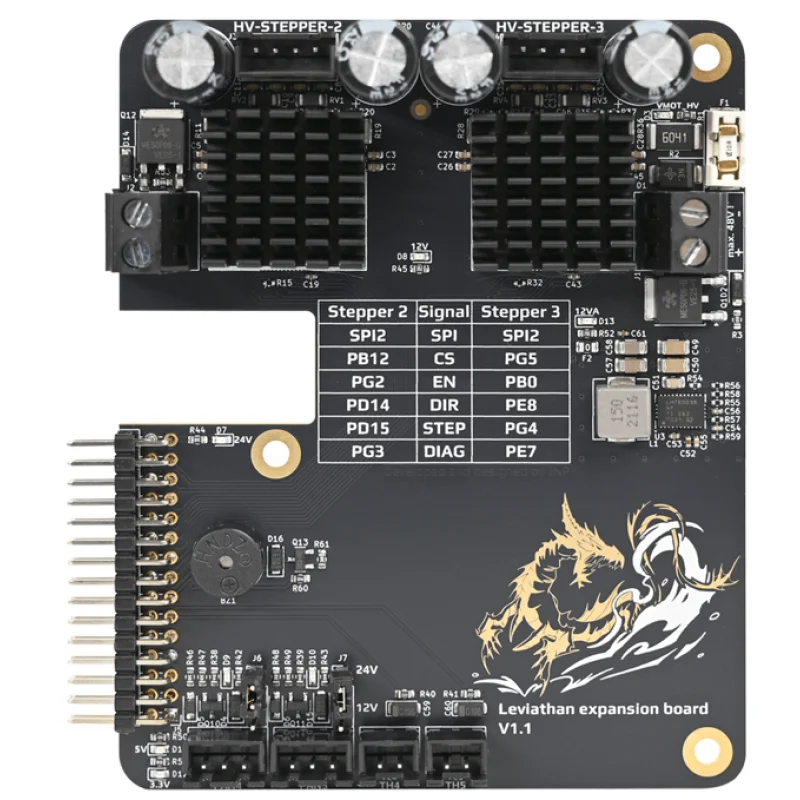

This is an expansion board for the Leviathan MCU by JNP and LDO Motors

LEVIATHAN EXPANSION BOARD major features.

Adds two TMC5160 motor driver interfaces, allowing the Leviathan mainboard to connect up to nine motors.

Power supply for stepper motors with two voltage options: 24V and 48V.

Equipped with a buzzer with a center operating frequency of 27 kHz, which can be customized to produce different sounds by changing the frequency.

Adds two 3-pin fan interfaces and two temperature detection interfaces.

Equipped with reverse polarity protection.
